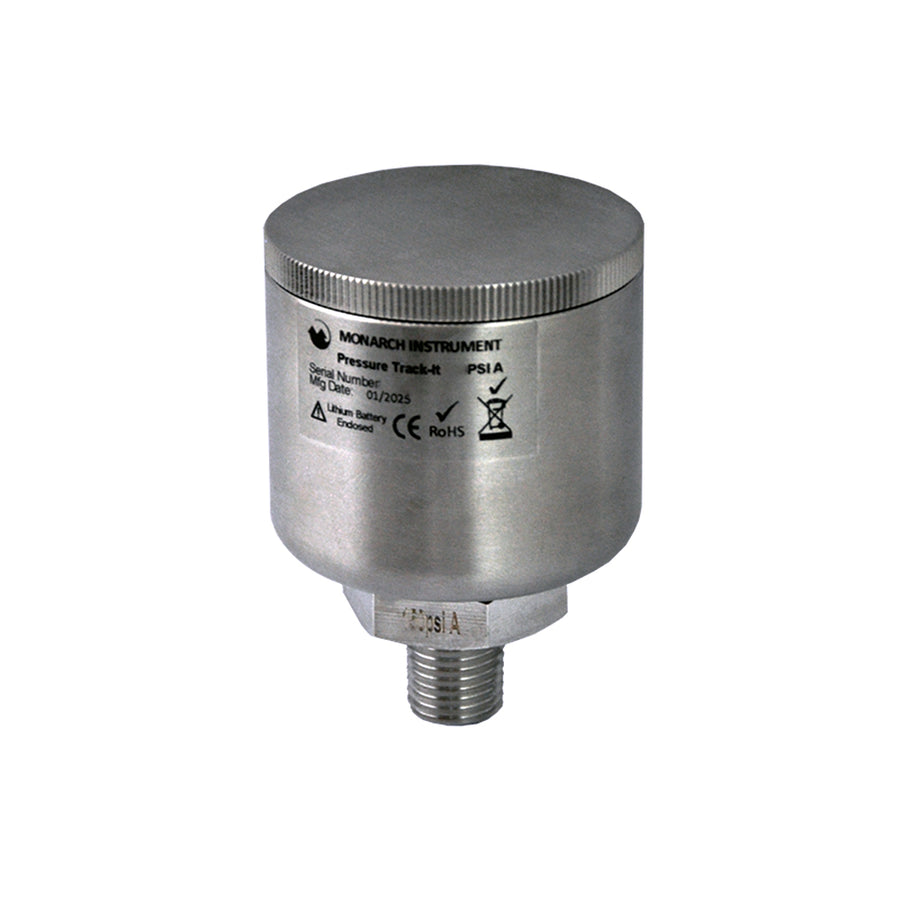

Track-It™ Absolute Pressure/Temperature Data Logger
Monarch Instrument’s Track-It™ Absolute Pressure/Temperature Data Logger is a compact, battery-powered, stand-alone device that can record up to 64,000 pressure/ambient temperature samples and are available in a wide variety of pressure ranges.
Battery and USB cable are included along with our free downloadable Track-It™ DataLogger PC Software and Track-It™ Transporter Android app!
All 6 options are available with a NIST Traceable Certificate!
These units are also available with various diaphragm seals. Contact Monarch Instrument for details.
Detailed Description
The Track-It™ Absolute Pressure/Temperature Data Logger is a battery-powered, stand-alone, watertight, compact data logger that can record up to 64,000 samples. It can be configured to record both pressure and ambient temperature or either parameter alone to maximize data storage space. The unit is easily configured using the free downloadable Track-It™ DataLogger Software; simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ DataLogger Software automatically identifies the logger.
Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The onboard data storage is nonvolatile so data will not be lost in the event of a depleted battery.
The Track-It™ Absolute Pressure/Temperature Data Logger can be ordered in several pressure ranges: 0-3, 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800, 0-8700, and 0-14,500 PSI. The logger is packaged in a rugged submersible (IP67) 316L stainless steel housing and has a standard ¼” NPT fitting (½” NPT fitting for 8700 and 14,500 ranges).
Typical Uses:
- Industrial Processes
- Food Processing
- Water Supply Line
- Hydrant Water Pressure
- Household Water Pressure
- Building Supply Pressure
- Municipalities
- Oil and Gas
- Petrochemical
- Compressors
- Pumps
- Water and Wastewater
- Vacuum Furnaces
Features
- Rugged IP67 316L stainless steel enclosure
- Programmable start/stop time and sample rates
- Up to 64,000 data samples per recording session
- High accuracy and precision, ASME Grade 3A
- USB Interface (cable included)
- Powerful interactive Track-It™ DataLogger Software package (free download)
- Track-It™ Transporter App available for direct data access with Android devices (using On-The-Go cable)
- Multiple alarm setpoints
- Ambient temperature range: -4 °F to 185 °F (-20 °C to – 85 °C)
- Available ranges: 35, 150, 350, 550, 2000, and 5800 PSIA
- 150% overrange protection
- ¼” NPT male connection
- Compact size
- Lithium battery included
- Accurate internal clock (1 minute/year)
- NIST Traceable Certificate available
Track-It™ Transporter App for Android Devices
All Track-It™ Pressure/Temp Data Loggers are compatible with the free Track-It™ Transporter Android application. The app allows you to use your Android device to start/stop recording and transfer data using a USB On-The-Go cable.
The Track-It™ Transporter App is available for free on Google Play.
Specifications
| Record: Sample Rate | User-configured 10 times per second up to 1 every 24 hours |
|---|---|
| Record: No. of Samples | 32,000 or 64,000 (dependent upon setup) |
| Record Trigger | Two independent triggersMultiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of week |
| Record Mode | Fill to end of memory or cyclic, number of samples, time duration |
| Alarms | 2 user-programmable alarms (High or Low) |
| Communications | Mini USB connection |
| Software | Track-It™ DataLogger Software—Program device, view data (historic or real-time), export to spreadsheet |
| Battery | Lithium 1/2AA 1.2AhLife: Up to 1 year typical @ 1 minute sample rate |
| Enclosure | 316L stainless steel, IP67 |
| Dimensions | 1.95 in. diameter x 2.19 in. [5 cm diameter x 5.6 cm] excludes port thread |
| Pressure Ranges | 0-3, 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800 PSI (Absolute or Gauge) |
|---|---|
| Accuracy | ±0.25% FS |
| Resolution | 0.01% |
| Overpressure Rating | 1.5X max |
| Port Connection | ¼″ NPT male; ½″ NPT male for 8700 and 14,500 ranges |
| Temperature Range | -20 °C to +85 °C /-4 °F to 185 °F |
| Accuracy | ± 2 °C -20 to 85 °C / -4 °F to 185 °F |
| Resolution | 0.0625 °C / 0.11 °F |
Specifications are subject to change without notice.
