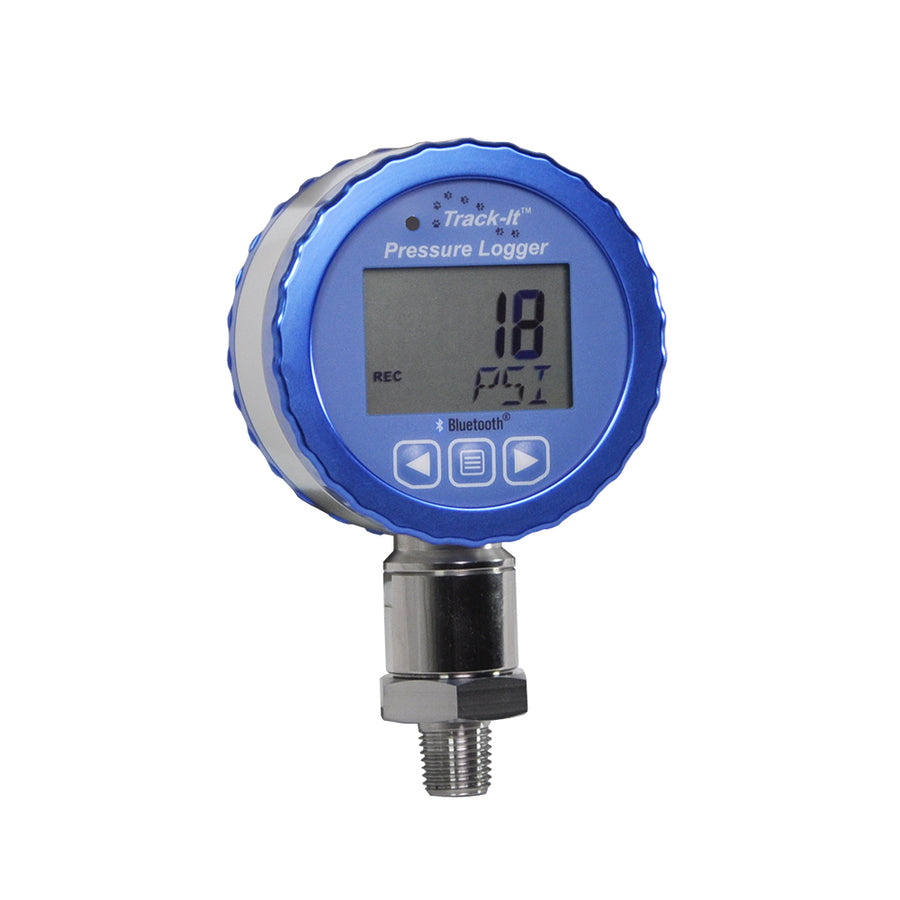

Track-It™ Vacuum/Temperature Data Logger with Display
Monarch Instrument’s Track-It™ Vacuum/Temperature Data Logger with Display is a battery-powered, stand-alone device with LCD that can record up to 130,000 vacuum samples for plotting data. They are available in a wide variety of ranges and come with USB and Bluetooth® Low Energy (LE) connectivity.
Battery and USB cable are included along with our free downloadable Track-It™ DataLogger PC Software and Track-It™ Transporter Android app!
All 4 options are available with a NIST Traceable Certificate.
These units are also available with various diaphragm seals. Contact Monarch Instrument for details.
Detailed Description
The Track-It™ Vacuum-Temperature Data Logger with Display is a battery-powered, stand-alone, water-resistant compact data logger that records up to 130,000 samples. It can be configured to record vacuum and ambient temperature or pressure alone to maximize data storage space. Real-time data, alarms, and min/max information can be displayed on the multiline LCD.
The unit is easily configured using the downloadable Track-It™ DataLogger Software. Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 10 samples per second up to 1 sample every 24 hours. The user can initiate the recording immediately, manually via the keypad buttons, at some future preset time, or on an alarm condition. With Bluetooth® Low Energy (LE) connection, users can collect recorded data wirelessly using Track-It™ Transporter Android app (available free on Google Play) or a Windows® compatible PC. Note that the onboard data storage is non-volatile so data will not be lost in the event of a depleted battery.
The Track-It™ Vacuum/Temp Data Logger with Display can be ordered in various ranges (see above). The logger is packaged in a rugged anodized aluminum and stainless-steel housing and has a standard ¼” NPT fitting.
Typical Uses
- Industrial Process
- Food Manufacturing
- Water Supply Line
- Hydrant Water Pressure
- Household Water Pressure
- Building Supply
- Municipalities
- HVAC
- Oil and Gas
- Petro Chemical
- Compressors
- Pumps
- Hydrostatic Testing
- Water and Wastewater
Features
- Display live and min/max readings
- Record up to 10 samples per second
- High accuracy and precision, ASME Grade 3A
- Bluetooth® Low Energy (LE) communication using Windows® compatible PC or Track-It™ Transporter Android App (free to download from Google Play)
- USB interface (cable included)
- Powerful interactive Track-It™ DataLogger Software package (free download)
- Rotate head and display 360 degrees, allows installation in any orientation
- Alarm setpoints and indicators
- User-definable engineering units
- Rugged design
- Ambient temperature range: –4 to 185 °F (-20 to 85 °C)
- Available Torr ranges: 0 to -380, 0 to -760, 760 to 0, and 760 to -760
- 150% overrange protection
- ¼” NPT male connection
- Lithium battery included
- Accurate internal clock (1 minute/year)
- NIST Traceable Certificate available
Track-IT™ DataLogger Software
Track-It™ DataLogger Software is a powerful Windows-based software package that is available for use with every Track-It data logger. It allows for easy setup, retrieval, interpretation, and export of the recorded data. Simply connect your Track-It data logger to an open USB port and begin communicating immediately. If your data logger has Bluetooth® Low Energy (LE) capability, users can collect data wirelessly using the Track-It™ Transporter Android app (available free on Google Play).
Advanced features include:
- Real-time data view and data retrieval when connected via USB or Bluetooth®
- Delayed recordings, fixed duration recordings by time or number of samples, multiple record times, manual record by button press, record on alarms
- Sample rates from 10 times a second up to 24 hours; instantaneous, average, maximum or minimum values
- Two Alarms: high or low, latched or momentary, and record under these alarm conditions
- Display of data graphically, digitally, or tabular formats with alarm indication
- Export user-selected data in CSV formats for import into Excel®; filter data to be exported
This software is compatible with Windows 7/8/10/11.Software Download.
Track-It™ Transporter App for Android Devices
All Track-It™ Pressure/Temp Data Loggers are compatible with the free Track-It™ Transporter Android application. The app allows you to use your Android device start/stop recording and transfer data using a USB On-The-Go cable or Bluetooth® LE.
The Track-It™ Transporter App is available for free on Google Play.
Specifications
| Record: Sample Rate | User-configured 10 times per second up to 1 every 24 hours |
|---|---|
| Record: No. of Samples | 130,000 (dependent upon setup) |
| Record Trigger | Two independent triggersMultiple trigger modes: Instantaneous, button control, on alarm, time and date (start and stop), day of week |
| Record Mode | Fill to end of memory or cyclic, number of samples, time duration |
| Display | Two-line, 4½-digit 7-segment LCD and 4-digit alphanumeric display with custom icons, multi-segment bar graph for 0-100%indication, backlit |
| Alarms | 2 user-programmable alarms (High or Low) |
| Communications | Mini B USB Port or Bluetooth LE (if compatible) |
| Software | Track-It™ DataLogger Software—Program device, view data (historic or real-time), export to spreadsheet |
| Battery | Lithium 1/2AA 1.2AhLife: Up to 1 year typical @ 1 minute sample rate(LCD off and Bluetooth LE disabled) |
| Enclosure | Anodized Aluminum and 316L Stainless Steel |
| Dimensions | 2.94 in. diameter x 1.82 in. deep x 4.78 in. tall including port threads [74.6 mm x 46.3 mm x 121.4 mm] |
| Vacuum Ranges | 0 to -380 Torr, 0 to -760 Torr, 760 to 0 Torr, 760 to -760 Torr |
|---|---|
| Accuracy | ±0.25% FS |
| Resolution | 0.01% |
| Overpressure Rating | 1.5X max |
| Port Connection | ¼″ NPT male vacuum up to 5800 PSI; ½″ NPT male for higher pressure ranges |
| Temperature Range | -20 °C to +85 °C /-4 °F to 185 °F |
| Accuracy | ± 1 °C 0 to 50 °C / 32 °F to 122 °F± 2 °C -20 to 85 °C / -4 °F to 185 °F |
| Resolution | 0.1 °C / 0.2 °F |
Specifications are subject to change without notice.
