Accushim, Inc.

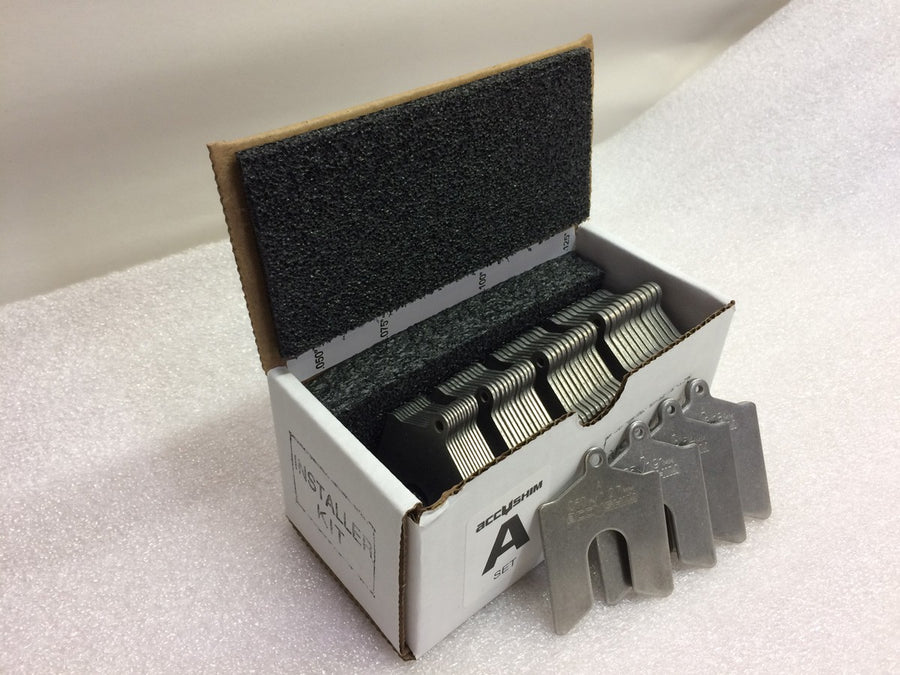

ACC-Inst Stainless Steel Shim Installer Kits
$275.00
SKU: ACC-INST-A
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Our Precut Stainless Steel Shims are manufactured from the highest quality, corrosive-resistant stainless steel. The shims are dimensionally uniform and are marked for permanent easy to read identification.
- Includes 12 shims each of the following sizes:
- .050", .075", .100", .125"
- Available in sizes: A, B, C, and D
Shim Size Chart
| Shim Size | Dimensions | Slot Size | Rec. Bolt Size | Motor Frame Numbers |
|---|---|---|---|---|
| AA | 1.5" x 1.5" | 7/16" | up to 7/16" | — |
| A | 2" x 2" | 5/8" | 1/4" – 5/8" | 42, 48, 56, 143, 145, 162–169, 213–219, 1610, 1810, 2110 |
| B | 3" x 3" | 3/4" | 1/2" – 3/4" | 66, 253–259, 283–289, 323–329 |
| C | 4" x 4" | 1-1/4" | 3/4" – 1-1/4" | 203, 204, 224, 225, 363–369, 403–409, 443–449, 504–509 |
| D | 5" x 5" | 1-5/8" | 1" – 1-5/8" | 502–509, 582–589, 681–689 |
| E | 6" x 6" | 1-15/16" | up to 1-15/16" | — |
| H | 8" x 8" | 2-5/16" | up to 2-5/16" | — |
Custom Shims
Reliability Direct can fill your custom shim needs with CNC laser cutting that is fast and economical. This cutting process produces accurate pieces in any type of steel and many non-metals. It causes no distortion or burrs and is accurate to +/- .001". Best of all, there are no tooling costs or long lead times that go with die cutting.
Contact us at (214) 238-0493 for full specifications.
