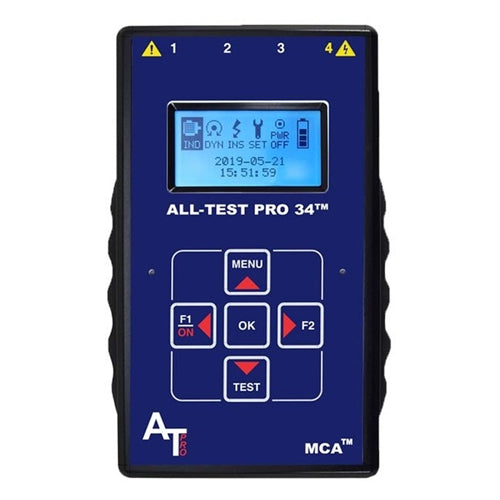

All-Test PRO 34 Electric Motor Tester
All-Test Pro 34 IND Electric Motor Tester with Motor Circuit Analysis (MCA) Basic Software - Single User
Analyzes complete stator and rotor electrical health in AC induction squirrel-cage rotor motors.
- Circuit Analysis MCA™
- Patented Test Value Static™ (TVS™)
- Patented Dynamic Stator and Rotor Signatures
- Includes MCA Basic™ Software
WHY TEST MOTORS? BECAUSE MOTORS FAIL - Not all winding faults start as ground faults. Instead, they can start as a weakness in the winding insulation system that may eventually fault to ground when the motor stops running. Motor testing is integral to the success and e iciency of your business. ALL-TEST Pro instruments ensure that testing your motor is safe, easy, and dependable. The ALL-TEST PRO 34™ uses our proven, patented technology to look beyond vibration, temperature, and ultrasound test methods - giving you instant answers on your motor’s health.
Test motors that have quit running by testing directly at the motor or from the MCC.
Motor Circuit Analysis (MCA)™ Rapid evaluation of the entire motor circuit. A deenergized non-destructive test method to assess the health of a motor from the Motor Control Center (MCC) or directly at the motor. Immediate and complete information on the status of the Stator, Rotor, Connections, Contamination, and Insulation to ground.
Patented Dynamic Stator and Rotor Signatures Used to evaluate the condition of the stator and squirrel-cage rotor in a single test. Perfect for testing new and repaired motors prior to acceptance.
Patented Test Value Static (TVS)™ TVS™ is a sum calculated from the 3-phase MCATM static test and is used as a reference value for the motor. Common types of faults in the rotor and stator windings will change TVSTM
| Product Includes | tester, case, 115V charger, test leads with clips, Hard Case, usb cable and condition calculator software |
| Specifications |
Test Frequencies 50, 100, 200, 400, 800 Hz Test Value Static / Reference Value Static 0.01 – 10000 ±1%, (Dimensionless calculated value) Stator Test Dynamic Repeatability ±1%, (of measured data and calculated deviations) Rotor Test Dynamic Repeatability ±2%, (of measured data and calculated deviations) Resistance 0.01 – 999 Ω ±1%, Max Resolution: 0.01 mΩ Relative Accuracy “Phase to Phase” ± 0.1% True 4-wire Kelvin measurement. (Includes automatic compensation for thermoelectric offset voltages) Dissipation factor - DF (for frame and stator) 1 – 100% measurement range 1 – 10% ±0.5 (C = 10 – 1000 nF) 10 – 30% ±1.0 (This specification is based on battery operation and USB not connected to PC) (Measured dielectric phase angle displayed as φ) Capacitance (frame – stator) 2 – 2000 nF measurement range 10 – 1000 nF ±3%, all other values ±5% (This specification is based on battery operation and USB not connected to PC) Insulation Resistance 0 – 999 MΩ @1000V, 0 – 500 MΩ @500V 1 – 100 MΩ ±3%, all other values ±5% Enclosure Material - Polycarbonate, UL94-V2 Safety According to IEC 61010-1 cat.III 1000V Approvals CE Keyboard Sealed tactile touch, XL size keys Connections 3 x Motor input/output - push-pull connectors 4-pole High Voltage output - Ø 4mm safety jack PC communication - USB type B connector Charger input - 2.5mm diameter center pin DC-jack, Display Graphic LCD, monochrome 128 x 64 pixels (3.1”) Viewing Area=69 x 36.5mm, white LED backlight. Batteries 2 x LiION cells with ≥ 2100 mAH capacity Temperature range storage -20 °C to +60 °C (-4 °F to +140 °F) Temperature range operating -10 °C to +50 °C (+14 °F to +122 °F) Humidity 0-80% relative humidity, non-condensing EMC • EN61000-6-4 (Emission) • EN61000-6-2 (Susceptibility |
| size | 3.2" x 8.6" x 2" (1.55lbs) |
| Shipping Weight | 9.0000 |
| Power Supply | rechargable battery pack |
| Manufacturer | ALL-TEST Pro, LLC |
| MPN | All Test Pro 34 |
| Manufacturer Warranty | 1 Year |
Contact us at (214) 238-0493 for full specifications.
