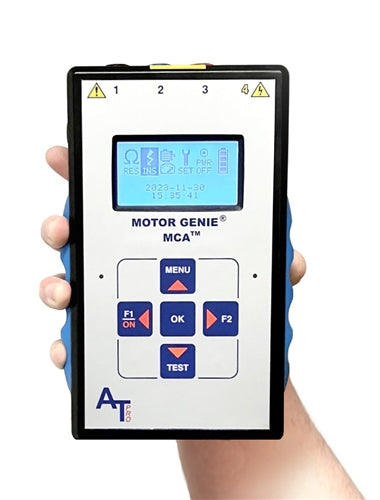

All-Test PRO Motor Genie Motor MCA Tester

Reliability Direct Store, LLC

All-Test Pro Motor Genie MCA Motor Tester

$4,250.00

SKU: ATP-30030

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

MOTOR GENIE MCA

Electric Motor Analyzer for AC Squirrel Cage Motors (<100V)

The most comprehensive, portable and affordable motor diagnostic tool currently on the market.

The handheld MOTOR GENIE® is an excellent troubleshooting tool that tests low voltage AC induction motors, finds winding faults such as turn-to-turn, coil-to-coil, and grounded windings.

Much More Than Your Grandpa’s Megohmmeter

With its advanced capabilities, the MOTOR GENIE® MCA™ outperforms other traditional tools such as the Megohmmeter, RCL meter and other resistance meters.

In addition, the MOTOR GENIE® MCA™ includes the most diagnostic functions for a lower price than other electric motor analyzers.

The Motor Genie MCA provides the quickest and most comprehensive diagnostic assessment of your motors health at a more affordable price than any other motor analyzer on the market.

TECH SPECS

Under the hood.

Absolute Accuracy

0.1mΩ – 9.99 mΩ ±1% ± one digit, Max Resolution: 0.01 mΩ
10.0 mΩ – 99.9 mΩ ±1% ± one digit, Max Resolution: 0.1 mΩ
100 Ω - 500 Ω ±1.5%, ± one digit
501 Ω - 999 Ω ±2.5%, ± one digit

Resistance

True 4-wire Kelvin measurement
Thermoelectric Voltage Offset Compensation

Test Frequencies

50, 100, 200, 400, 800 Hz

Screen

Graphic LCD, monochrome 128 x 64 pixels (3.1) Viewing Area – 69mm x 36.5mm
White LED backlight

Batteries

2 x Li-ION cells with ≥ 2100 mAh capacity
UL 1642, UN38.3 Certified

Relative Accuracy

Phase to Phase ± 0.1% ± one digit

Accessories Included

3x Test Leads with Kelvin Clips and push-pull connectors
1x Test Lead with 4mm safety plug and MC Dolphin clip
Charging adapter, Universal input type 85-260VAC, output 9VDC @ 1.7A

Safety & CE

Safety: According to IEC 61010-1 Ed. 3.0
EMC: Emission: EN61000-6-4
Immunity: EN61000-6-2, EN61000-4-2, EN61000-4-3

Dimensions

Size: 126 x 218 x 51 mm (5 x 8.6 x 2) (W x L x H)
Weight: 0.7 kg (1.5 lb.)

The ALL-TEST PRO® MOTOR GENIE MCA is your best, most economical choice for fault detection and troubleshooting.

FREE Mobile Application for the MOTOR GENIE MCA is located on Google Play® and The Apple Store®

Contact us at (214) 238-0493 for full specifications.
