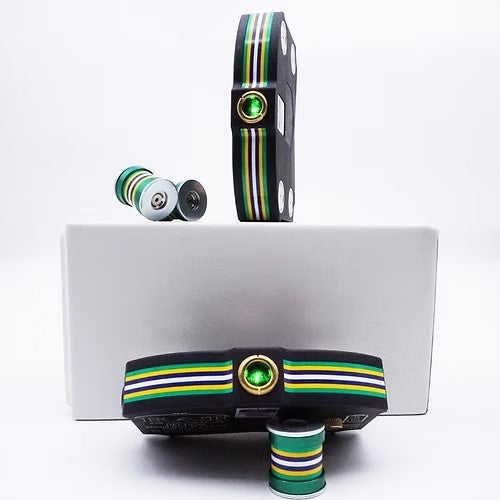

B.A.T. Delta Dual Cross-firing Belt alignment system

This system has the same functions as the B.A.T. Belt Alignment Tool, but it can also be used on timing and cog belts, and can be used inside the pulley.

By far, the best option for faster, easier alignments! Each B.A.T. Laser Transmitter can be used as a single belt alignment system.

The B.A.T. Delta Dual Cross-Firing Laser Kit includes:

2 B.A.T. Laser Transmitters

3 GlowLine Magnetic Targets

1 Rugged Custom Foam Carry Case

2 "123" Batteries
 This system includes 2 magnetic arc-shaped Laser Transmitters, where each Laser is also the Target for its counterpart. The B.A.T. Belt Alignment System™ also includes 3 GlowLine™ Magnetic Targets.
This tool was developed to alleviate typical shaft and pulley alignment issues that occur with traditional belt alignment tools. When relying on the human eye and the traditional 3 target system, the preventative maintenance and alignment tasks are not as accurate as they can be. Based on decades of experience in preventative maintenance, Mike Olszewski saw an opportunity to fill a void, making alignments accurate and incredibly faster to complete.
The result is a tremendous savings in time through less man hours, and less downtime for maintenance.
If you’re looking for a way to eliminate the guesswork out of belt and pulley alignment, save money and increase efficiency, then this is the Belt Alignment Tool for you.
TECHNICAL SPECIFICATIONS
B.A.T. – Target Dimensions: 4.125″ x 9.500″ x .750″
Weight:  28.8 oz
Laser Line Width:  < 2.5mm @ 5M
Beam Angle 110°:  70″ @ 3 feet, 162″ @ 8 feet
Accuracy:  0.020″ @ 8 feet
Pulley Size Range:  Any
Belt Size Range:  Any <75 feet
Operating Range:  < 75 feet
Circular Vial:  45 Min/0.1″
Laser Type:  Green Line Laser, Class IIIa / 3R 4.0 – 5.0 mW
B.A.T. / Glow Line / Targets:  6061 Flat Black Anodized Aluminum
Targets:  1.00″ diameter x .750″ length – fixed
Magnets:   Chrome-Plated Rare Earth
Power:  Two (2) Size “AAA” Batteries (7 hrs.)
IP Rating: IP 67
