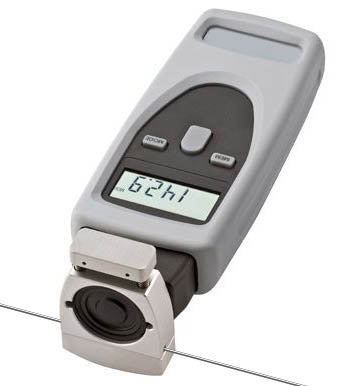

CDT-2000HD-TW Welding Wire Speed Meter / Combination Tachometer complete kit - A5-1279
$995.00
SKU: ELE-CDT-2000HD-TW
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
For use on Welding Wire Diameter Range of 0.032" - 0.120" (0.8 to 3.0mm)
The CDT-2000HD-TW accurately measures the linear feed speed of welding wire in feet, inches or meters per minute. A precision measuring head secures the wire and maintains contact against the measuring wheel for accurate measurements. Based on the award winning CDT-2000HD tachometer, the CDT-2000HD-TW also measure RPM via contact and non-contact methods.
A5-1279 - Rotaro-TW
- Includes DAkkS Traceable Calibration Certificate
- For use on Welding Wire Diameter up to 0.120" / 3mm
- Wire Speed can be measured in feet/min, meters/min or in/min (user selectable)
- Total Length can be measured in feet, meters, inches.
- Spring-loaded head and ball-bearing mounted contact roller eliminates slip and ensures accuracy
- Designed and fabricated in Germany
Complete Kit
The CDT-2000HD-TW includes the Tachometer, Welding Wire Speed Adapter, Slide-In Tachometer Contact Adapter, 6" & .1m Surface Speed Wheels, Cone Tip, Funnel Tip, Extension Shaft, Reflective Tape, Two (2) AA Batteries (1.5 V), Calibration Certificate and Operating Instruction Manual -- all supplied in a foam-fitted, hard-plastic Carrying Case.
Specifications
| Speed Range | 0.30 - 6,500 feet/min
0.10 - 1,999 meters/min 4.0 - 78,000 inches/min |
|---|---|
| Resolution | .01 from 0 - 100
.1 from 100 - 1,000 1 from 1000 - 99,999 Measuring Ranges |
| Accuracy | ± 0.02% of reading or 1 digit |
| Display | 5 - Digit LCD, 10mm high |
| Decimal Point | Automatic |
| Memory System | Maximum, minimum, and last reading (retained in memory for the life of the batteries) |
| Measurement System | Non-Contact: Visible LED light beam
Contact: Contact adapter |
| Engineering Units | RPM: RPM
Surface Speed: Ft/min, inch/min & meters/min Length: Feet, inches, meters |
| Sensing Distance | Up to 24 inches (60 cm) |
| Display Update Time | 0.5 seconds or one measuring |
| Auto Power Off | After 30 seconds of non-use (minimum, maximum and last reading retained in memory) |
| Battery Life | 40 hours continuous use |
| Battery | 2 AA (1.5 V) or rechargeable |
| Weight | 6 ounces (170 grams) |
| Housing Material | ABS Plastic housing with removable protective rubber shell |
| Housing Rating | IP40 |
| Operating Temperature | 32 to 122° F (0 to 50° C) |
| Storage Temperature | -4 to 150° F (-20 to 70° C) |
| Accessories included | Contact adapter, cone tip, universal surface speed wheel, reflective tape, operating instructions and foam-fitted, hard plastic carrying case |
| Optional Accessories | Shaft extension, 3.15 inches (80 mm) |
| Warranty | 5 years |
| Calibration Certificate | Included |
