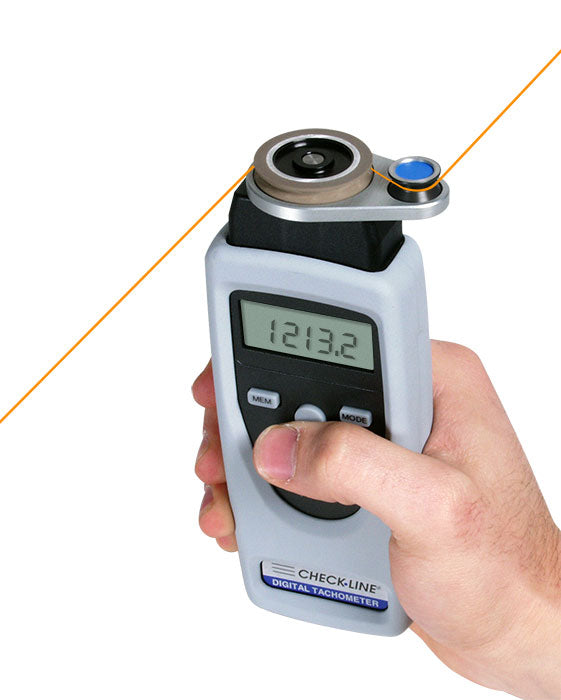

YSL-2000HD Multi-function Yarn Speed & Length Meter
The Checkline YSL-2000HD combines the functions of three separate instruments in one, easy-to-use device.
It accurately measures the speed and length of yarns, and other filaments using a unique "wrapper" roller. This precision roller directs the filament onto the low-inertia, U-grooved measuring wheel to maximize contact and eliminate filament slip and breakage.
The YSL-2000HD can also be used as either a contact or non-contact tachometer to measure rotational speeds of shafts, motors, pulleys, etc. or linear speeds of moving surfaces such as conveyor belts, webs of paper or fabric, etc.
Features
- Includes Traceable calibration Certificate
- Slide-on measuring heads make it simple to rapidly convert from one function to another
- Accuracy of ± 0.02%
- Built-in memory for last, maximum, minimum values
- 5 Year Warranty
Complete Kit
YSL-2000HD Video Overview
Specifications
Measuring Ranges
| RPM | Non-Contact: 1.00 - 99,999 rpm
Contact: 1.00 - 19,999 rpm |
|---|---|
| Surface Speed | 0.30 - 6,500 feet/min
0.10 - 1,999 meters/min 4.0 - 78,000 inches/min |
| Length | 0.01 - 99,999 feet
0.02 - 99,999 meters 1.0 - 99,999 inches |
| Resolution | .01 from 0 - 100
.1 from 100 - 1,000 1 from 1000 - 99,999 |
| Yarn/Wire Diameter (max.) | Yarn: 1mm Wire: 0.3mm |
| Accuracy | ± 0.02% of reading or 1 digit |
| Display | 5 - Digit LCD, 10mm high |
| Decimal Point | Automatic |
| Memory System | Maximum, minimum, and last reading (retained in memory for the life of the batteries) |
| Other PNs | Rotaro T |
| Measurement System | Non-Contact: Visible LED light beam
Contact: Contact adapter |
| Sensing Distance | Up to 14 inches (350mm) |
| Display Update Time | 0.5 seconds or one measuring |
| Auto Power Off | After 30 seconds of non-use (minimum, maximum and last reading retained in memory) |
| Battery Life | 20 hours continuous use |
| Weight | 6 ounces (170 grams) |
| Housing Material | ABS Plastic |
| Operating Temperature | 32 to 122º F (0 to 50º C) |
| Storage Temperature | -4 to 150º F (-20 to 70º C) |
| Optional Accessories | Shaft extension, 3.15 inches (80 mm) |
| Warranty | 5 years |
