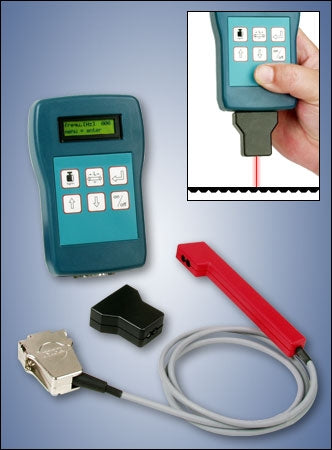

Check-Line BTM-400PLUS Belt Tension Meter
- Supplied with plug-in and cable-connected sensor
- Displays belt tension in Newtons or pounds, or alternatively, frequency in Hertz
- Takes measurements quickly, displaying accurate results within one second
- Easy-to-use keypad design simplifies operation
- Menus are displayed in English, or the user can select German, French or Italian
- Includes traceable calibration certificate
Specifications
| Measuring Range* | 10 - 800 Hz |
|---|---|
| Indicator error | ±1 Hz |
| Total error | < 5 % |
| Sensing Distance*** | 0.200" - 1.6" (5 - 40 mm), typically (2.5"/60 mm max, depending upon ambient light & surface of belt to be measured) |
| Casing | ABS Plastic |
| Display | 2 line LCD, 16 character per line |
| Input Range | free span length: up to 9.990 m
belt mass: up to 9.999 kg/m |
| Belt Density | Belt Density (d = kg/m or lb/ft) |
| Belt Span | Min, approx. 10 cm (4 inch)
Max, no maximum (as long as belt will oscillate) |
| Warranty | 1 Year |
| Light Source | Red LED |
| Light Size | at 50mm - 6mm Square
at 150mm - 15mm Square |
| Power Supply | 9V battery |
| Metric Units | MASS must be entered in kg/meter
SPAN in "meters" |
| English Units | MASS must be entered in lbs/ft
SPAN in "feet" |
| Operation Video | https://www.youtube.com/watch?v=-l4-uG0JIAc&feature=youtu.be |
| Country of Origin | Germany |
BTM-400PLUS can measure up to 800 Hz, however most belts will break near 400Hz
*Static tension (T) accuracy depends on the precision of entered values for free belt span (L), density (d) and natural frequency (f) of the vibrating free belt span, that has been plucked or struck, as noted in the relationship: T = 4dL2f2. Note that highest accuracy is achieved in the frequency mode where readings are accurate to <1%, ± 1 Hz.
**Sensing distance can be extended when ambient light level is low also by adding a piece of reflective tape in the "target area" of the belt.
