Electromatic
CDT-1000HD Non-Contact Tachometer
$180.00
SKU: ELE-CDT-1000HD
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

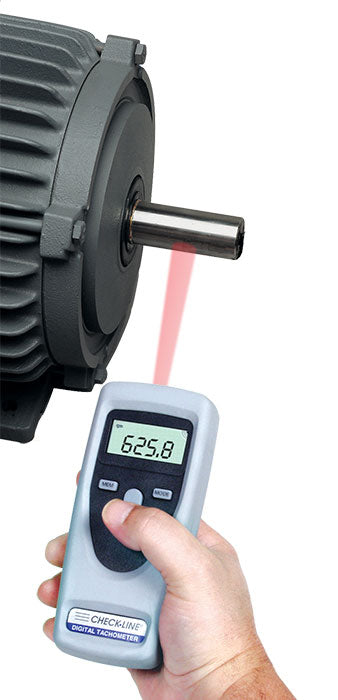

The CHECK-LINE CDT-1000HD Hand-Held Digital Tachometer accurately measures rotational speed (RPM) using a visible beam of light. The CDT-1000HD can be up to 24 inches away from the small piece of reflective tape that is affixed to the rotating element.
The CDT-1000HD's rugged construction, portability and outstanding features make It an ideal choice for maintenance personnel, machine operators or others in a wide variety of machinery and material handling applications.
A combination Contact & Non-Contact model, the CDT-2000HD, is also available.
Also known as Testo 465, Redpoint A5-1100
- Includes DAkkS Traceable calibration Certificate
- Measures speeds from as low as 1.00 rpm up to 99,999 rpm
- Built-in memory stores maximum, minimum, average and last reading for recall to the display
- Accuracy of 0.02% with a resolution of 0.01 RPM
- NEW - Molded Rubber Shell Provides Additional Physical & Environmental Protection
Low Battery Indicator alerts the operator if the batteries are low.
On-Target Indicator confirms that the measurements are reliable.
Memory Indicators are illuminated when the maximum, minimum, average and last readings are recalled to the display for viewing.
Complete Kit
The CDT-1000HD complete kit includes the Tachometer, Reflective Tape, Two (2) AA Batteries (1.5 V), Operating Instruction Manual and Traceable certificate -- all supplied in a foam-fitted, hard-plastic Carrying Case.
Specifications
| Measuring Range | 1.00 - 99,999 rpm |
|---|---|
| Resolution | .01 from 0 - 100
.1 from 100 - 1,000 1 from 1000 - 99,999 |
| Accuracy | ± 0.02% of reading or 0.01 digit (under 50) |
| Display | 5 - Digit LCD, 10mm high |
| Decimal Point | Automatic |
| Memory System | Maximum, minimum, and last reading (retained in memory for the life of the batteries) |
| Measurement System | Visible LED light beam |
| Sensing Distance | Up to 24 inches (60 cm) |
| Display Update Time | 0.5 seconds or one measuring |
| Auto Power Off | After 30 seconds of non-use (minimum, maximum and last reading retained in memory) |
| Battery Life | 40 hours continuous use |
| Battery | 2 AA (1.5 V) or rechargeable |
| Weight | 6 ounces (170 grams) |
| Housing Material | ABS Plastic housing with removable protective rubber shell |
| Housing Rating | IP40 |
| Operating Temperature | 32 to 122° F (0 to 50° C) |
| Storage Temperature | -4 to 150° F (-20 to 70° C) |
| Accessories included | 10 Strips of 1/2 x 4 inch reflective tape |
| Warranty | 5 years |
| Calibration Certificate | Included |
