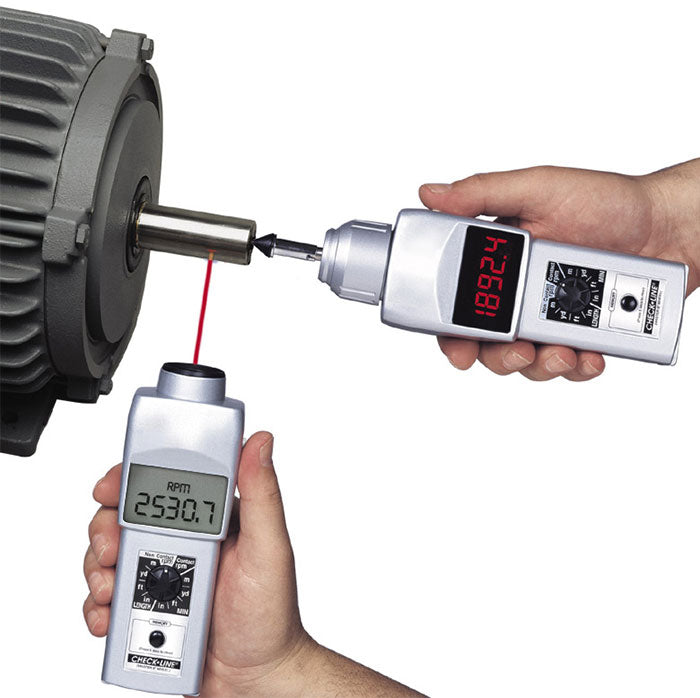

Check-Line DT-205LR / DT-207LR Contact & Non-Contact Tachometer
$350.00
SKU: ELE-DT-205LR
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation
- Accuracy of 0.006% over 25,000 RPM
- Built-in memory stores maximum, minimum, average and last reading for recall to the display
- High-precision laser measures from distances up to 14 feet
- NIST Certification included at no additional cost
- Provides RPM, Speed, and Length readings in selectable units
Complete Kit
All models are supplied as a complete kit including the tachometer, reflective tape, screw-in contact adapter, 2 cone tips, funnel tip, shaft extension, surface speed wheel, two AA batteries, NIST traceable calibration certificate and an operating instruction manual - all supplied in a foam-fitted carrying case.
Note: On DT-205LR-12 and DT-207LR-12 models 12" circumference wheel is supplied instead of 6" version
Specifications
Measuring Range
| Non-Contact - | 6 to 99,999 rpm |
|---|---|
| Contact - | 0.8 to 25,000 rpm |
Accuracy
| 6 to 8,299 rpm | ±1 rpm |
|---|---|
| 8,300 to 24,999 rpm | ±2 rpm |
| 25,000 to 99,999 rpm | ±0.006% rpm |
Measuring Units
| per Minute | Revolutions, Meters, Yards, Feet, Inches |
|---|---|
| Total Length | Meters, Yards, Feet, Inches |
| Measuring Distance | 14 feet (5.2 m) maximum |
| Memory | 13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements) |
| Over-Range Indicator | Flashing numerals |
| Update Time | 1 second (typical) |
| Batteries | 2 - 1.5 V AA |
| Operating Temp | 32° to 113° F (0 to 45° C) |
| Construction | Die-cast aluminum housing |
| Weight | 0.8 pounds (365 grams) |
| Dimensions | 6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7) |
| Warranty | 1 year
200L contact adapter |
