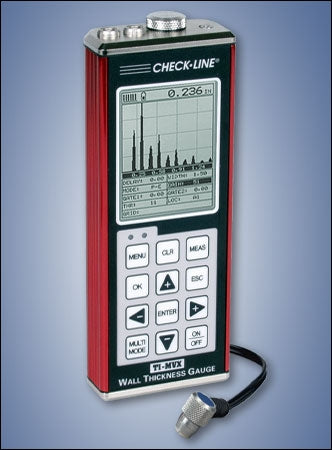

Check-Line TI-MVX Graphical A & B Scanning Ultrasonic Wall Thickness Gauge

The MVX is equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform, Time based B-Scan, and Large Digits).

The A-Scan rectified mode is commonly used for detecting flaws/pits in pulse-echo mode and measuring through paint and coatings in echo-echo mode.

The time-based B-Scan feature of the MVX displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material.

Built in hardware AGC gain control for through paint measurements in multi mode operation.

The MVX has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.

Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.

Use the find feature to locate the detection point, while automatically adjusting the display to bring the signal into view.

MVX also comes complete with our Windows® PC software for transferring data to and from a PC.

Includes Flaw Inspection - Prove Up Mode, (special probe required)

The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.

CE Certified

Includes NIST Calibration Certificate

Display Views

A-Scan Scan Mode B-Scan Mode Large Digits The A-Scan rectified mode is the preferred display view for flaw and pit detection applications and measuring through paint and coatings in the echo-echo mode. The B-Scan view displays a time-based cross section of the test material. It is commonly used to display the profile of the blind or underside of a pipe or tank. The Large Digits view provides a basic digital thickness gauge look and feel. The large display makes it easy for the operator to monitor the thickness readings.

Gauge

4 oz. bottle of coupling fluid

2 AA batteries

NIST Calibration Certificate

Data transfer software

Serial output cable

Operating Instruction Manual

Foam-fitted carrying case
