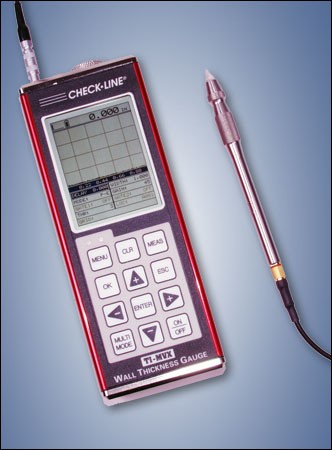

Check-Line TI-PVX Graphical High-Precision A & B Scanning Ultrasonic Wall Thickness Gauge

• Standard Delay Line (acrylic and graphite tips for metals and thin plastics),
• Pencil Delay Line (tough access area on thin materials), and
• Contact transducers (variety of applications)

• RF waveform,
• +/- Rectified waveform, and
• Large Digits with Scan Bar.

Features

• The time based B-Scan feature displays a cross section of the test material. Displays the profile of the opposite surface of the material.
• The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material and display the minimum measurement scanned.
• Hardware AGC gain control for multiple echo and thru-paint measurement.
• Multiple calibration options: One Point, Two Point, or selection from a Material List.
• 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
• PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs.
• The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material, and display the minimum measurement scanned.
• Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view. Adjustable resolution settings
• Visual and audible alarm with hi and lo limit settings for specific application tolerances.
• PVX comes complete with our Windows® PC software for transferring data to and from a PC.
• 2 year limited warranty
• CE Certified
• Includes NIST traceable calibration certificate

The TI-PVX is supplied as a complete kit including:

• PVX Gauge
• 3/16" 10Mhz transducer
• 4 oz. bottle of coupling fluid
• 2 AA batteries,
• NIST-Traceable Calibration Certificate,
• Data transfer software
• Serial output cable
• Operating Instruction Manual
• Foam-fitted carrying case.
