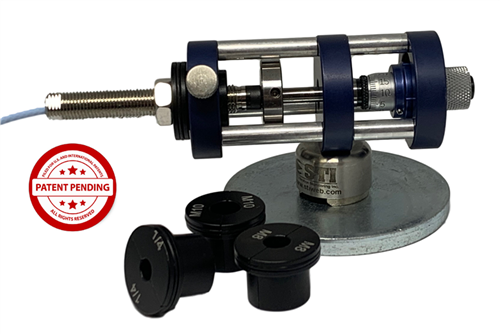

CMCP-TKPC QuickClick Pocket Proximity Probe Calibrator

The CMCP-TKPC QuickClick Pocket Calibrator provides a convenient and precise method of verifying the voltage output vs. physical gap of a Proximity Probe system. Designed for use in the field or shop environment, the CMCP-TKPC will work with any manufacturer’s 5mm and 8mm probes and is supplied with probe holders to accommodate 1/4-28, 3/8-24, M8 and M10 thread sizes.

STI’s patented QuickClick micrometer allows the user to easily adjust the micrometer in 0.005” (English option) or 0.1mm (Metric option) increments quickly and reliably, improving the overall time it takes to complete a report and with greater precision. The QuickClick can be disengaged to allow for 0.001” or 0.01mm graduations.

With the length of the physical gap, and the output of the Proximity Probe, a calibration curve can then be generated using STI’s Proximity Probe Calibration tool and Microsoft Excel (see the Downloads tab).

FEATURES:

• Used to Verify Proximity Probe Calibration
• For 5mm and 8mm Proximity Probes
• Patented QuickClick Micrometer Adjustment

• Compact Size (1.5"x3.5")

• 4 Collect Sizes 1/4”, 3/8”, M8 and M10
• 4140 Steel, 0.938“ (24 mm) Dia. Target
• Table or Magnetic Mount
• Hard Carrying Case
• English or Metric Micrometer
