STI Vibration Monitoring, Inc.

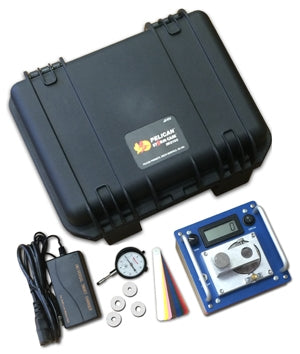

CMCP-TKPro Vibration Test Kit
$2,950.00
SKU: CMCP-TKPRO-E-00
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The CMCP-TKPro is used to provide a calibrated mechanical vibration using a variable speed Wobble Plate. A Precision Dial Indicator is used to position the Swing Arm to the desired amplitude. The Dial Indicator is then replaced with a Proximity Probe. Both the Proximity Probe (Eddy Probe) System and Monitoring System can be verified by this method. The CMCP-TKPro’s Wobble plate is 4140 Steel which is the standard for all Proximity Systems. The CMCP-TKPro is battery powered using a long life Li-Ion battery, Smart Charger is included. The CMCP-TKPro also runs on AC power using the Smart Charger provided. The CMCP610 Eddy Probe Calibrator is an excellent companion product.
Features:
Battery:
Features:
- AC or Battery Powered
- Lion 2. 6 Ah Battery
- 82 mA Dr aw @ 3600 RPM
- Smart Charger ·
- 0-15 mil s Dynamic Range
- Precision Dial Micrometer
- Variable Speed to 7000 RPM
- Tachometer Display
- English or Metric Versions
- Weather proof Travel Case
- Plastic Feeler Gauges for "Quick Gap"
Specifications:
25.9 VDC Li-Ion 2.6 Ah
PCM and Polyswitch Protected
82 mA Draw @ 3600 RPM
101 mA Draw at 7000 RPM
Charger:
110-240 VAC, 50-60 Hz 1.2 Amp w/LEDs
Red = AC Connected, Charging
Green = AC Connected, Battery Not Connected/Charged
Vibration Amplitude Range:
0 to 15 mils (0 to 381 um)
Speed:
0-7,000 RPM (0-100 Hz)
RPM Display:
Backlit LCD
Digits 0.6” High (15.2 mm)
Dimensions:
TKPro: 6.25” x 6.25” x 5.5” High (159 x 159 x 140 mm)
Travel Case: 14.2” x 11.4” x 6.5” High (361 x 290 x 165 mm)
Total Weight:
8 pounds (3.63 kilos)
Probe Adapters:
¼”, 3/8”, M8, M10
Contact us at (214) 238-0493 for full specifications.
