STI Vibration Monitoring, Inc.

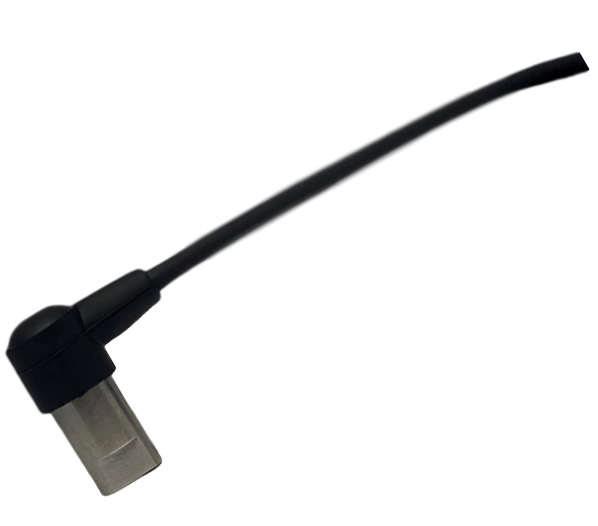

CMCP1100S Package of 6 Accelerometers
$729.00
SKU: CMCP1100S-05-00-6-pack
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Discounted Pricing for Quantity of 6!
The CMCP1100 100 mv/g Accelerometer with 5, 10 or 20 Meter Integral Cable is manufactured in house to high quality standards. Each accelerometer is fully enclosed in a potted and waterproof stainless steel case. CMCP1100 accelerometers, in the three standard length cables, are always in stock ready for quick delivery. Other cable lengths and side exit models are custom made to fit your exact specifications. 1/4" x 28 UNF Mounting Stud included. An optional Female BNC Connector is available.
The CMCP1100 100 mv/g Accelerometer with 5, 10 or 20 Meter Integral Cable is manufactured in house to high quality standards. Each accelerometer is fully enclosed in a potted and waterproof stainless steel case. CMCP1100 accelerometers, in the three standard length cables, are always in stock ready for quick delivery. Other cable lengths and side exit models are custom made to fit your exact specifications. 1/4" x 28 UNF Mounting Stud included. An optional Female BNC Connector is available.
Specifications
Dynamic Performance
| Sensitivity (±10%) | 100 mV/g (10.2 mV/(ms⁻²)) |
|---|---|
| Measurement Range | ±50 g (±500 ms⁻²) |
| Frequency Range: (±3 dB) | 0.32 to 10 kHz |
| Mounted Resonant Frequency | >25 kHz |
| Amplitude Linearity | ≤1% |
| Transverse Sensitivity | ≤5% |
Environmental
| Shock Limit | ±7,000 g pk (±70000 ms⁻² pk) |
|---|---|
| Temperature Range | -65 to +185° F (-54 to 85° C) |
Electrical
| Settling Time | 2.5 sec |
|---|---|
| Excitation Voltage | 18 to 28 VDC |
| Excitation Constant Current | 2 to 20 mA |
| Output Impedance | <100 ohms |
| Output Bias Voltage | 8 to 12 VDC |
| Electrical Case Isolation | >10⁸ ohms |
| Electrical Protection | RFI/ESD |
| Integral Cable | 22 AWG, 221° F (22 AWG, 105° C) |
Spectral Noise
| (1 Hz) | 85 µg / √Hz (850 (µm/s⁻²) / √Hz) |
|---|---|
| (10 Hz) | 10 µg / √Hz (100 (µm/s⁻²) / √Hz) |
| (100 Hz) | 2.7 µg / √Hz (27 (µm/s⁻²) / √Hz) |
| (1 kHz) | 1 µg / √Hz (10 (µm/s⁻²) / √Hz) |
Mechanical
| Size | 0.36" x 3.76" (9.14 x 9.55 mm) |
|---|---|
| Weight (including 5 M cable) | 2.5 oz (70.7 g) |
| Mounting Thread | 1/4-28 UNF-2B |
| Mounting Torque | 2 to 5 ft-lb (2.7 to 6.8 N-m) |
| Sensing Element | Ceramic/Shear |
| Case Material | Stainless Steel |
| Sealing | Potted |
| Wrench Flats | 7/16 |
