STI Vibration Monitoring, Inc.
CMCP1100SR Revolution Series Swivel Mount Accelerometer with Integral Cable
$185.00
SKU: CMCP1100SR-05-00
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

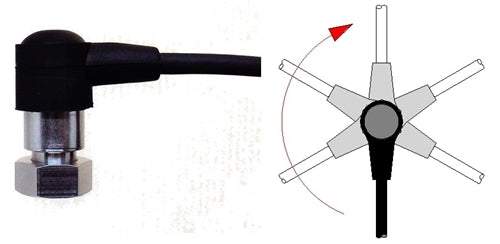

The CMCP1100SR Revolution Series 100 mV/g accelerometer has a pivoting mounting stud, so the side cable exit can be turned to any radial direction after the sensor is installed. It comes with a 5, 10 or 20 meter integral cable, is manufactured in house by STI to high quality standards, and is fully enclosed in a potted and waterproof stainless steel case. The three standard cable lengths are kept in stock; other cable lengths are custom made to your specifications. Optional female or male BNC connector.
Features:
- Pivoting Mounting Stud, Cable Exit Rotates 360°
- 100 mV/g ±10% Output
- 0.32 Hz to 10 kHz Frequency Range (± 3 dB)
- Waterproof (Epoxy Sealed)
- Compact Case Size
- Santoprene Strain Relief
- UV and Oil Resistant Integral Cable
- 5, 10 and 20 Meter Stocked Cable Lengths
Specifications
Dynamic Performance
| Sensitivity (±10%) | 100 mV/g (10.2 mV/(m/s²)) |
|---|---|
| Measurement Range | ±50 g (±490 m/s²) |
| Frequency Range (±3 dB) | 0.32 Hz to 10 kHz (19.2 to 600,000 CPM) |
| Frequency Range (±10%) | 1.5 Hz to 8 kHz (90 to 480,000 CPM) |
| Mounted Base Resonance | >25 kHz |
| Transverse Sensitivity | <5% |
Environmental
| Operating Temperature Range | -65 to +185 °F (-54 to +85 °C) |
|---|---|
| Maximum Shock | 7,000 g pk (68,670 m/s² pk) |
| Sealing | Epoxy encapsulated, waterproof |
Electrical
| Supply Voltage | 18 to 28 VDC |
|---|---|
| Constant Current Excitation | 2 to 20 mA |
| Output Bias Voltage | 8 to 12 VDC |
| Output Impedance | <100 ohms |
| Case Isolation | >10⁸ ohms at 500 V |
| Settling Time | 2.5 sec |
| Electrical Noise | 0.1 mg max (0.98 mm/s² max) |
Mechanical
| Case Material | Stainless steel |
|---|---|
| Sensing Element | PZT / shear |
| Mounting | Pivoting 1/4-28 UNF stud |
| Mounting Torque | 5.9 ft-lb (8 N·m) |
| Cable Exit | Side exit, rotates 360° |
| Weight (with 5 m cable) | 2.5 oz (70.7 g) |
| Cable Jacket | TPE, UV and oil resistant |
| Cable Lengths | 16, 32 or 64 ft (5, 10 or 20 m) |
Shipping
| Carriers | UPS or FedEx for domestic orders; FedEx for international orders |
|---|---|
| Shipping cost | Calculated automatically at checkout for US orders. International orders require a complete ship-to address with postal code. |
| Freight terms | FOB shipping point, freight prepaid. Title passes to the buyer at the vendor's dock. |
| Hazardous items | Epoxy adhesives, batteries and paint markers cannot ship by air freight |
| International | Shipping fees do not include taxes, tariffs or duties |
Returns
| Return window | 7 calendar days from delivery. Contact us before returning any item. |
|---|---|
| Condition | New, unaltered and unused. Special and custom orders are not returnable. |
| Restocking fee | 15% on non-defective items that are not being exchanged |
| Full policy | Refund / Return Policy |
See our Shipping & Billing Terms for how estimated shipping is charged, and our Refund / Return Policy.
Questions about shipping on this item? Call (214) 238-0493 or contact us.
