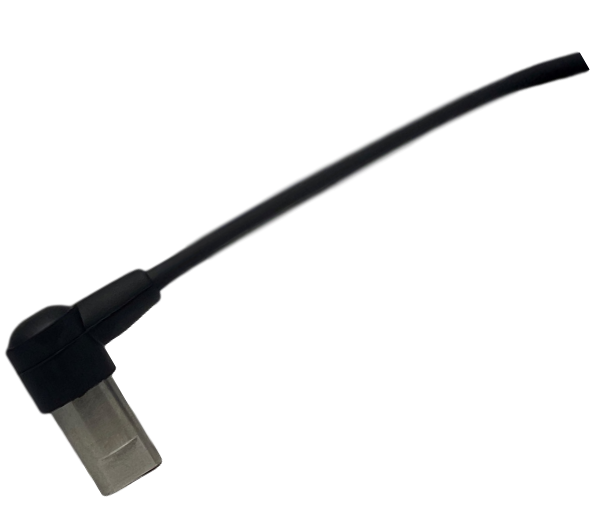

CMCP1100ST Dual Output Side-Exit Accelerometer with Temperature Sensor
$175.00
SKU: CMCP1100ST-05-00
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The CMCP1100ST is a dual output, side-exit accelerometer that provides a 100 mV/g vibration signal and a 10 mV/°C temperature signal from one sensor, with a 5, 10 or 20 meter integral cable. It is manufactured in house by STI to high quality standards and fully enclosed in a potted and waterproof stainless steel case. The three standard cable lengths are always in stock; other cable lengths are custom made to your specifications. 1/4" x 28 UNF mounting stud included. Optional female or male BNC connector.
Features:
- Dual Output: Vibration and Temperature
- 100 mV/g ±10% and 10 mV/°C
- Side Cable Exit
- Small 1/2" Footprint
- 0.32 Hz to 10 kHz Frequency Range (± 3 dB)
- Waterproof (Epoxy Sealed)
- -65 to +185 °F (-54 to +85 °C) Operating Range
- Integral Cable, 1/4" x 28 UNF Mounting Stud
Specifications
Dynamic Performance
| Sensitivity (±10%) | 100 mV/g (10.2 mV/(m/s²)) |
|---|---|
| Measurement Range | ±50 g (±490 m/s²) |
| Frequency Range (±3 dB) | 0.32 Hz to 10 kHz (19.2 to 600,000 CPM) |
| Frequency Range (±10%) | 1.5 Hz to 8 kHz (90 to 480,000 CPM) |
| Mounted Base Resonance | >25 kHz |
| Transverse Sensitivity | <5% |
Temperature Output
| Temperature Output Sensitivity | 10 mV/°C |
|---|---|
| Temperature Output Range | 32 to 212 °F (0 to 100 °C) |
Environmental
| Operating Temperature Range | -65 to +185 °F (-54 to +85 °C) |
|---|---|
| Maximum Shock | 7,000 g pk (68,670 m/s² pk) |
| Sealing | Epoxy encapsulated, waterproof |
Electrical
| Supply Voltage | 18 to 28 VDC |
|---|---|
| Constant Current Excitation | 2 to 20 mA |
| Output Bias Voltage | 8 to 12 VDC |
| Output Impedance | <100 ohms |
| Case Isolation | >10⁸ ohms at 500 V |
| Settling Time | 2.5 sec |
| Electrical Noise | 0.1 mg max (0.98 mm/s² max) |
Mechanical
| Case Material | Stainless steel |
|---|---|
| Sensing Element | PZT / shear |
| Mounting | 1/4-28 UNF stud |
| Mounting Torque | 5.9 ft-lb (8 N·m) |
| Cable Exit | Side exit |
| Weight (with 5 m cable) | 2.5 oz (70.7 g) |
| Cable Jacket | TPE, UV and oil resistant |
| Cable Lengths | 16, 32 or 64 ft (5, 10 or 20 m) |
