CMCP200ET Accelerometer Mounting Pad with Temperature

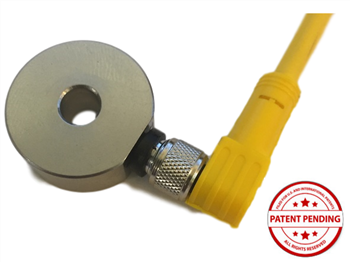

The CMCP200ET Electronic Temperature Mounting Pads are designed to make it easy to add a Temperature measurement to your existing Accelerometer installation. They can be used for both new installations and retrofit. They have a center clearance hole for ¼”x28 UNF so that the cable exit can be in the best possible location. For standalone temperature monitoring prepare the surface area as you would for an accelerometer and epoxy or bolt pad to the bearing surface. For accelerometer installation use a 1” long ¼”x28 UNF Stud and the Accelerometer will act as the nut. Picture shows pad with CMCP603 cable.

Features:

• 0° to 100° C (32° to 212° F) •
• 10 mv/°C •
• 0.5°C Accuracy •
• Blue/Common, Black/Signal, Brown/Power) •
• 4.0 to 30.0 VDC Power •
• 3‐Pin M8 Male Connector •
• 1” D x 0.40 H •
• Through Hole for ¼”‐28 Stud or Bolt •
• 16 RMS Finish One Side

Typical Applications:

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.
