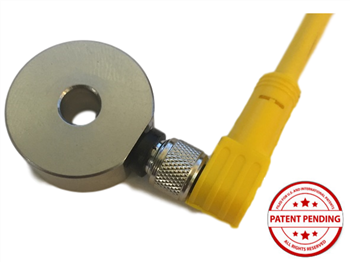

CMCP200ET Mounting Pad with Electronic Temperature
$49.00
SKU: CMCP-200ET
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The CMCP200ET Electronic Temperature Mounting Pads are designed to make it easy to add a Temperature measurement to your existing Accelerometer installation. They can be used for both new installations and retrofit. They have a center clearance hole for ¼”x28 UNF so that the cable exit can be in the best possible location. For standalone temperature monitoring prepare the surface area as you would for an accelerometer and epoxy or bolt pad to the bearing surface. For accelerometer installation use a 1” long ¼”x28 UNF Stud and the Accelerometer will act as the nut.
Mating cable: CMCP603C
Features:
Mating cable: CMCP603C
Features:
- 0 to 100° C (32 to 212°F)
-
10mV/° C
- 0.5% ° C/Accuracy
- Blue/Common, Black/Signal, Brown/Power
- 4.0 to 30.0 Vdc power
- 3 pin M8 Male Connector
- 1" Dia. X 0.40" High
- Through hole for 1/4-28" stud or bolt
- 16 RMS finish on one side
Contact us at (214) 238-0493 for full specifications.
