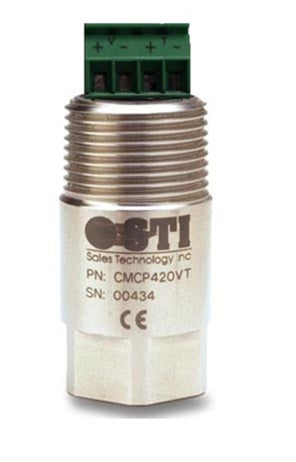

CMCP420VT-T Dual Parameter Loop-Powered Vibration and Temperature Transmitter
$640.00
SKU: CMCP420VT-T1
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Features:
The CMCP420VT-T is a Dual Parameter solid state, loop powered vibration and temperature transmitter. It provides a 4-20 mA output that is proportional to overall vibration in terms of velocity and a additional 4-20 mA output for temperature. The CMCP420VT-T continuously monitors machinery health and transmits directly into a PLC or DCS for trending, alarm and machine shutdown.
- Dual Parameter (Vibration and Temperature)
- Solid State Reliability
- 2-Wire Loop Powered (4-20 mA)
- 3/4" NPT for Conduit Connections
- Industry Standard 1/4"x28 UNF Stud Mounting
- Optional Display
- UL and CSA Approved Class 1, Division 2, Group B-D
- CE Approved
- RoHS Compliant
The CMCP420VT-T is a Dual Parameter solid state, loop powered vibration and temperature transmitter. It provides a 4-20 mA output that is proportional to overall vibration in terms of velocity and a additional 4-20 mA output for temperature. The CMCP420VT-T continuously monitors machinery health and transmits directly into a PLC or DCS for trending, alarm and machine shutdown.
Specifications
Dynamic
| Output | 4-20 mA proportional to full scale Velocity
4-20 mA proportional to -32 to 212° F (0-100° C) |
|---|---|
| Accuracy Velocity | ± 5% |
| Accuracy Temperature | 2.5° C |
Electrical
| Power (Two wire loop power) | + 18 to + 36 Vdc |
|---|---|
| Maximum Rload | 600 Ohms Max. @ Vs = 22 to 36 Vdc. 300 Ohms Max. @ Vs = 18 VDC |
| Grounding | Case Isolated |
Environmental
| Operating Temperature | -20° C to +85° C |
|---|
Mechanical
| Sealing | Epoxy Encapsulated |
|---|---|
| Enclosure | SS, NEMA 4, 4X, 12 |
| Mounting | 1/4"-28 UNF Stud |
| Mounted Weight | 8 oz. (without display) |
Classification
| UL and CSA Approved | Class 1, Division 2, Group B-D |
|---|
