STI Vibration Monitoring, Inc.

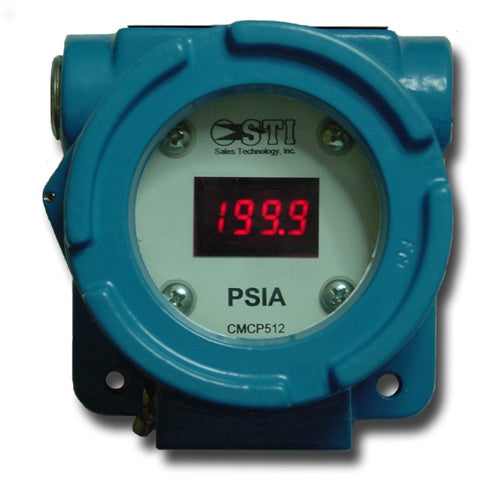

CMCP512 Explosion Proof Loop Powered Display
$395.00
SKU: CMCP512-00
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Features:
- Loop Powered
- Bright LED or LCD Display
- Class I, Division I
- Rugged NEMA 4X Enclosure
- Switch Selectable Range and Decimal Point
- Loop Drop only 4.5 Volts LED) 1.8 Volts(LCD)
Description:
The CMCP512 Explosion Proof Loop Powered Display is designed for applications where a simple inexpensive display is required. The CMCP512 gets its power from the 4-20mA input loop so there is no need for additional wiring or batteries. The CMCP512 is housed in a rugged NEMA 4X Explosion Proof Enclosure and can be mounted virtually anywhere. In addition to the key features listed above, the CMCP512 offers users a adjustable display, it has a switch selectable range and decimal point.
Specifications:
- Power: 4-20mA Loop Powered
- Input Range: 4-20mA
- Display: 3 1/2 inch Digital LED or LCD
- Loop Drop: 4.5 Volts(LED)1.8V(LCD)
- Operating Temperature: -20 C.to +80 C.
- Relative Humidity: 0-95% Non Condensing
- Dimensions: 4 1/2" W 6" H 6" Mounting: 2 Bolt (Standard) Approvals: FM, CSA, UL
- Class I (BCD), Class II (E,F,G),Class
CMCP-512-00: LED Display
CMCP-512-01: LCD Display
Contact us at (214) 238-0493 for full specifications.
