CMCP535 Velocity to Displacement Transmitter

$495.00

SKU: CMCP535

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

Downloads

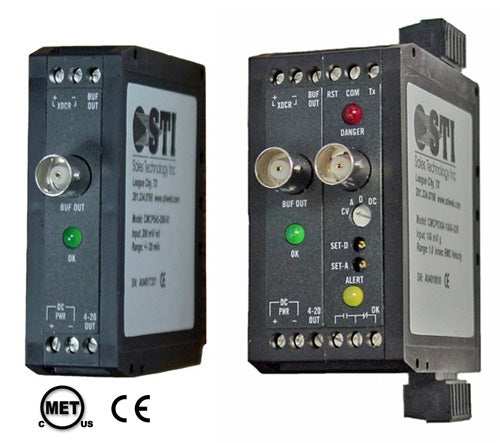

The CMCP535 Displacement Transmitter is compatible with both 100mV/In/Sec Piezo Electronic (Accelerometer w/Velocity Output) and 500mV/In/Sec Electro Mechanical Velocity Transducers and is available in English or Metric scaling. The CMCP535 provides constant current power (if required), checks for faults, processes the vibration signal to determine overall amplitude, and outputs a 4-20 mA dc current that is proportional to a user selected range of 5, 10, 15, 20 or 25 mils (metric equivalent of 127, 254, 381 508 or 635 microns). Combining transmitters with an existing PLC or DCS system results in a high density, low cost vibration monitoring system.

The Optional Alarm Module provides ok, alert and danger relays, selectable time delay, trip multiply, bypass and 0 to 5 VDC outputs for displays. The relay outputs can be used to trigger machine shut-down or other alarms. Combining transmitters with an existing PLC or DCS system results in a high density, low cost vibration monitoring system.

Alarms relays and trip multiply are available with the Monitor version.

Alarms - The CMCP500A Series Monitors have two independent set points, with LED alarm indicators and output relay contacts (Alert and Danger). Set points are adjustable via potentiometer, from 0 to 110% of full scale. Each has an adjustable delay of 1 to 10 seconds. SPST Relay contacts are rated 5 Amps @ 30 Vdc or 250 Vac for resistive loads.

Relay contacts can be independently configured by the user for either Normally Open (NO) (Standard) or Normally Closed (NC) operation. Relays are normally de-energized and can be configured for latching or non-latching (standard) operation. Latched alarms may be reset locally or by remote contact closure.

Trip Multiply - The monitors have set point multiplication of 3X via contact closure (2X available). To avoid tripping the alarms during machine start-up.

Custom Input and Output Calibrations are Available on Request.

Buffered Output:

A BNC connector mounted on the front of the unit provides access to the buffered transducer output signal. This includes both the unfiltered vibration signal, and the DC bias voltage. Portable test equipment or analyzers can be connected to this output without disturbing other system outputs.

Fault Detection:

On board fault detection circuitry continuously monitors the transducer for normal operation. If a fault occurs, the output current is reduced to <2 mA to indicate the fault to the readout system. A green LED on the front of the unit is turned off to provide a local indication of the fault.

Filters:

For applications that require monitoring specific frequency bands, optional high-pass and low-pass filters can be specified. These filters are modular and can be installed by the factory or in the field. Each module attenuates out-of-band signals at a rate of approximately 24 dB/octave. Corner frequencies from 2 Hz to 20 kHz may be specified. Filter modules may be cascaded to form higher order filters or to create a band-pass response. Filtering does not effect the buffered transducer output.

Specifications

Electrical Specifications

Input	Piezo Electronic or Mechanical Velocity Sensor (100 mv/in/sec)
Power	+24 Vdc @ 45 mA max. (30 mA typical).
Protection	Reverse polarity and transient protection included.
Frequency Response (wo/filters)	(-3 dB) 2 Hz to 2.0 kHz.
Buffered Output	BNC Connector 0-20 kHz.
Accuracy	0.5 % of Full Scale Range.
Output	4-20 mA proportional to the full scale range.
Maximum Load	600 Ohms Resistive.
Case	Isolated.
Range	English, 5, 10, 15, 20, or 25 mils
Constant Current Diode	4.0 mA
Fault Indication	Green LED and 4-20 mA < 2mA

Optional Relay Module

Alarms	OK, Alert and Danger
Alarm Setpoints	Alert and Danger Adjustable 0 to 110% FS.
Trip Multiply	2X or 3X on Contact Closure.
Alarm Relays	OK, Alert and Danger. Form C, SPDT, 5A @ 30 VDC or 250 VAC.
Time Delay	0.1, 1, 3, 6 or 10 Seconds, Selectable.
Alarm LED's	Alert = Yellow, Danger = Red.
Display Outputs	0-5 VDC for Current Value, Alert Setpoint and Danger Setpoint.

Environmental Specifications

Operating Temp.	-20°C to +80° C (-4° F to +176° F).
Storage Temp.	-55°C to +125° C (-67° F to +257° F).
Relative Humidity	0 - 95% Non-Condensing.

Physical

Mounting	32 mm (G style) or 35 mm (T style) DIN Rail.
Size	Transmitter 1.0" Wide x 3.11" High x 3.95" Deep

Shipping

Carriers	UPS or FedEx for domestic orders; FedEx for international orders
Shipping cost	Calculated automatically at checkout for US orders. International orders require a complete ship-to address with postal code.
Freight terms	FOB shipping point, freight prepaid. Title passes to the buyer at the vendor's dock.
Hazardous items	Epoxy adhesives, batteries and paint markers cannot ship by air freight
International	Shipping fees do not include taxes, tariffs or duties
