CMCP560 Isolated RTD Temperature Transmitter
DISCONTINUED: The CMCP560 has been discontinued by STI and is no longer available.
It has been replaced by the CMCP730D Display/Relay Module.

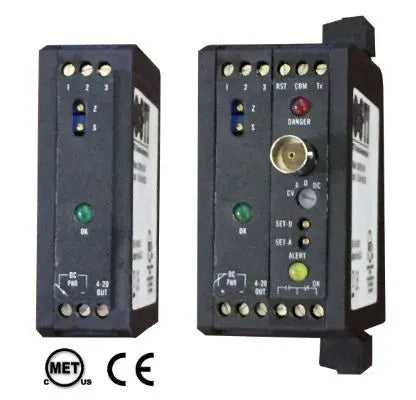

The CMCP560 RTD Temperature Transmitter is compatible with 100 Ohm Platinum 3 wire RTD's. Available in English scaling, the CMCP560 checks for faults, processes the temperature signal to determine overall amplitude, and outputs a 4-20 mA dc current that is proportional to a range of 0 to 250° F (-17.7 to 121° C). Combining transmitters with an existing PLC or DCS system results in a high density, low cost temperature monitoring system.
Alarms relays and trip multiply are available with the Monitor version.
Alarms - The CMCP500A Series Monitors have two independent set points, with LED alarm indicators and output relay contacts (Alert and Danger). Set points are adjustable via potentiometer, from 0 to 110% of full scale. Each has an adjustable delay of 1 to 10 seconds. SPST Relay contacts are rated 5 Amps @ 30 Vdc or 250 Vac for resistive loads.
Relay contacts can be independently configured by the user for either Normally Open (NO) (Standard) or Normally Closed (NC) operation. Relays are normally de-energized and can be configured for latching or non-latching (standard) operation. Latched alarms may be reset locally or by remote contact closure.
Trip Multiply - The monitors have set point multiplication of 3X via contact closure (2X available). To avoid tripping the alarms during machine start-up.
Fault Detection:
Specifications
| Input | 100 Ohm Platinum RTD |
|---|---|
| Power | +24 Vdc @ 45 mA max. (30 mA typical). |
| Protection | Reverse polarity and transient protection included. |
| Accuracy | 0.5 % of Full Scale Range. |
| Output | 4-20 mA proportional to the full scale range. |
| Maximum Load | 600 Ohms Resistive. |
| Case | Isolated. |
| Range | English, 0 to 250° F, or
Metric, -17.7 to 121° C |
| Fault Indication | Green LED and 4-20 mA < 2mA |
| Alarms | OK, Alert and Danger |
|---|---|
| Alarm Setpoints | Alert and Danger Adjustable 0 to 110% FS. |
| Trip Multiply | 2X or 3X on Contact Closure. |
| Alarm Relays | OK, Alert and Danger.
Form C, SPDT, 5A @ 30 VDC or 250 VAC. |
| Time Delay | 0.1, 1, 3, 6 or 10 Seconds, Selectable. |
| Alarm LED's | Alert = Yellow, Danger = Red. |
| Display Outputs | 0-5 VDC for Current Value, Alert Setpoint and Danger Setpoint. |
| Operating Temp. | -20°C to +80° C (-4° F to +176° F). |
|---|---|
| Storage Temp. | -55°C to +125° C (-67° F to +257° F). |
| Relative Humidity | 0 - 95% Non-Condensing. |
| Mounting | 32 mm (G style) or 35 mm (T style) DIN Rail. |
|---|---|
| Size | Transmitter 1.0" Wide x 3.11" High x 3.95" Deep |
