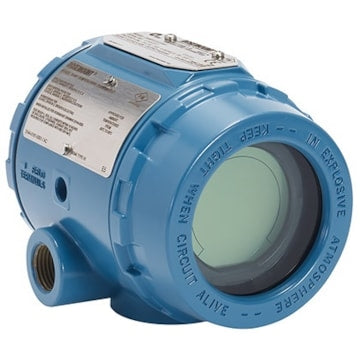

CMCP565 Isolated Thermocouple Temperature Transmitter
$0.00
SKU: CMCP565
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
DISCONTINUED: The CMCP565 has been discontinued by STI and is no longer available.
It has been replaced by the CMCP730D Display/Relay Module.
The CMCP565 Isolated Thermocouple Temperature Transmitters are compatible with J and K type thermocouple inputs, and they provide a 4-20 mA output proportional to the overall measurement. Each unit processes the signal to determine overall amplitude, and outputs a 4-20 mA dc current that is proportional to a user specified range such as 0-250 Deg. F. Combining transmitters with an existing PLC or DCS system results in a high density, low cost monitoring system.Alarms relays and trip multiply are available with the Monitor version.
Alarms - The CMCP500A Series Monitors have two independent set points, with LED alarm indicators and output relay contacts (Alert and Danger). Set points are adjustable via potentiometer, from 0 to 110% of full scale. Each has an adjustable delay of 1 to 10 seconds. SPST Relay contacts are rated 5 Amps @ 30 Vdc or 250 Vac for resistive loads.
Relay contacts can be independently configured by the user for either Normally Open (NO) (Standard) or Normally Closed (NC) operation. Relays are normally de-energized and can be configured for latching or non-latching (standard) operation. Latched alarms may be reset locally or by remote contact closure.
Trip Multiply - The monitors have set point multiplication of 3X via contact closure (2X available). To avoid tripping the alarms during machine start-up.
Custom Input and Output Configurations Available On Request
Buffered Output:
A BNC connector mounted on the front of the unit provides access to the buffered transducer output signal. This includes both the unfiltered vibration signal, and the DC bias voltage. Portable test equipment or analyzers like SKF-CM's MicrologTM can be connected to this output without disturbing other system outputs.
A BNC connector mounted on the front of the unit provides access to the buffered transducer output signal. This includes both the unfiltered vibration signal, and the DC bias voltage. Portable test equipment or analyzers like SKF-CM's MicrologTM can be connected to this output without disturbing other system outputs.
Fault Detection:
On board fault detection circuitry continuously monitors the transducer for normal operation. If a fault occurs, the output current is reduced to 2 mA to indicate the fault to the readout system. A red LED on the front of the unit is turned on to provide a local indication of the fault.
Documents Available:
Specifications
Electrical Specifications
| Input | Type J or K |
|---|---|
| Power | +24 Vdc @ 45 mA max. (30 mA typical). |
| Protection | Reverse polarity and transient protection included. |
| Accuracy | 0.5 % of Full Scale Range. |
| Output | 4-20 mA proportional to the full scale range. |
| Maximum Load | 600 Ohms Resistive. |
| Case | Isolated. |
| Range | English, 0 to 250° F, or
Metric, -17.7 to 121° C |
| Fault Indication | Green LED and 4-20 mA < 2mA |
Relay Module
| Alarms | OK, Alert and Danger |
|---|---|
| Alarm Setpoints | Alert and Danger Adjustable 0 to 110% FS. |
| Trip Multiply | 2X or 3X on Contact Closure. |
| Alarm Relays | OK, Alert and Danger.
Form C, SPDT, 5A @ 30 VDC or 250 VAC. |
| Time Delay | 0.1, 1, 3, 6 or 10 Seconds, Selectable. |
| Alarm LED's | Alert = Yellow, Danger = Red. |
| Display Outputs | 0-5 VDC for Current Value, Alert Setpoint and Danger Setpoint. |
Environmental Specifications
| Operating Temp. | -20°C to +80° C (-4° F to +176° F). |
|---|---|
| Storage Temp. | -55°C to +125° C (-67° F to +257° F). |
| Relative Humidity | 0 - 95% Non-Condensing. |
Physical
| Mounting | 32 mm (G style) or 35 mm (T style) DIN Rail. |
|---|---|
| Size | Transmitter 1.0" Wide x 3.11" High x 3.95" Deep |
