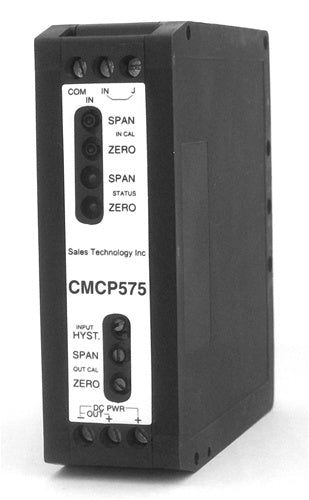

CMCP575 Speed Transmitter

Input Signals

Voltage (Amplitude):

10 mV-100 Vrms (0-5kHz); 50 mV to 50 Vrms (1 kHz to 38 kHz)

Contact:

Dry, 2 mA @ 24 VAC rating

Frequency Range:

0-0.031 Hz to 0-38 kHz full scale

Output Signals

Type:

4-20 mA DC; 0-20 mA DC; 0-10 mA DC; 0-1 mA DC; 1-5 VDC; 0-5 VDC; 0-10 VDC

Output Loop Drive Capability:

V Supply:

15 to 42 VDC

I out

4-20 mA or 0-20 mA

V supply

15

24

36

42

R(ohms)

500

950

1550

1850

Performance

Calibrated Accuracy:

±0.1%

Independent Linearity:

±0.025% max

Repeatability:

±0.005% max., ±0.002% typ.

Zero TC:

±0.005% of span max/°C

Span TC:

±0.005% of span max/°C

Load Effect:

±0.005% zero to full load

Output Ripple:

10 mV P/P maximum

Response Time:

350 milliseconds (10 to 90% step response)

Bandwidth:

(-3 db): 120 Hz output response

Temperature Range:

Power Supply Effect:

±0.005% of span, max.

Isolation:

Input/output/case: 1000 VDC or 600 VAC

Note: All accuracies are given as a % of span.

Power

15 to 42 VDC:

28 mA typical; 33 mA maximum

Reverse polarity and transient protection included

Mechanical

Electrical Classification:

General purpose

Connection:

Screw, compression type, accepts up to 14 AWG

Controls:

Input SPAN and ZERO push buttons, Input Hsyteresis potentiometer, Output Span and Zero potentiometers

Mounting:

DIN rail

Weight:

4 oz. (115 grams)

Housing:
