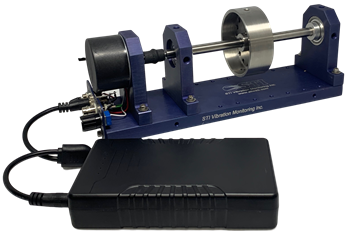

CMCP601M Mini Battery Powered Rotor Kit

The CMCP601M Mini Rotor Kit is designed for easy transport, setup, and use. With a long battery life of 10+ hours, it makes it easy to demonstrate and train in the use vibration sensors such as Proximity Probes, Accelerometers and Velocity Sensors using Vibration Analyzers or other Monitoring Systems. To extend runtime the charger may be used concurrently with the battery.

Features:

• Battery Powered
• 10+ Hours of Runtime @ 3600 RPM
• Swappable Rolling Element and Journal Bearings
• Flawed Ball Bearings Included
• 0 to 5,000 RPM Variable Speed
• Internal Speed Sensor with Pulse Output
• Custom Carrying Case

At 10” (254 mm) Long, the CMCP601M is designed to be both smaller and lighter than our popular CMCP601M Series. The CMCP601M is not designed to experience any Critical Speeds and accelerates and decelerates smoothly from 0 to 5,500 RPM. Eighteen, 10-32 Threaded Balancing Holes are provided on the rotating mass at 20° apart to allow the user to create an imbalance or to make balance corrections. A balance weight kit with assorted weights is provided with the kit.

The CMCP601M features swappable Rolling Element and Journal Bearing modules. Each kit is provided with two journal bearings, two new rolling element bearings and two flaw induced rolling element bearings.

Two flaw induced rolling element bearings are provided with the kit, one with a 0.004” outer race slice and the other with a 0.004” inner race slice. Fast changeout of the bearing is done simply by loosening the setscrew in the bearing adapter and inserting another bearing module. Bearing Modules are also included with Smooth Bore/Journal Bearings for demonstrating dampening with Case Mounted Sensors or Proximity Probes.

Items Included:

• Basic Rotor Kit Base
• Motor Stand with Brushless 50-Watt Motor
• Battery Pack with Fuel Gauge
• 100-240VAC Charger and Adapter Cables
• Two (2) Bearing Stands
• Two (2) New Rolling Element Bearing Modules
• Two (2) Fault Induced Rolling Element Bearing Modules
• Two (2) Journal Bearing Modules
• Two (2) Proximity Probe Brackets

• Mass with Balancing Holes
• Long Shaft
• Short Shaft for Overhung Setups
• Shaft Coupling
• Balance Weight Kit
• Mass Bracket for Transit
• Hard Travel Case
