STI Vibration Monitoring, Inc.
CMCP601R Reciprocating Compressor Kit
$4,215.00
SKU: CMCP601R
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

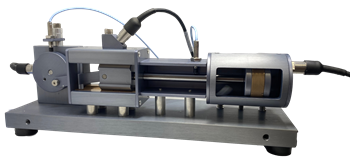

The CMCP601R Reciprocating Compressor Demonstration Kit is designed to demonstrate vibration monitoring techniques used on Reciprocating Machinery. Fully equipped with sensors the CMCP601R can be equipped with Accelerometers on the Motor/Gear, Crosshead and Cylinder End along with Proximity Probes in the Crosshead for Rod Drop and Rod Runout. A mounting bracket and machined Flywheel Notch are provided for a Proximity Probe Keyphasor or other type of once per turn reference signal. Two shaft connecting rod holes are provided for adjusting the total stroke distance.
FEATURES:
The Battery Powered DC Motor has an adjustable speed of 0 to 319 RPM (0 to 5.3 Hz). The Cylinder is independently mounted on two vertical spring-loaded linear bearings and height (alignment) can easily be adjusted to demonstrate both Rod Drop and Rod Run Out. The Crosshead has both upper and lower Oil Infused Bronze Bearings (Slippers) and the Piston rides on actual Wear Ring Stock. The Connecting Rod has Bronze Bearings on both ends and connects the Flywheel (Crank) to the Crosshead Pin. Stroke can be adjusted on the Flywheel between 1” and 1.25” (25.4, 31.75 mm).
The Battery Powered DC Motor has an adjustable speed of 0 to 319 RPM (0 to 5.3 Hz). The Cylinder is independently mounted on two vertical spring-loaded linear bearings and height (alignment) can easily be adjusted to demonstrate both Rod Drop and Rod Run Out. The Crosshead has both upper and lower Oil Infused Bronze Bearings (Slippers) and the Piston rides on actual Wear Ring Stock. The Connecting Rod has Bronze Bearings on both ends and connects the Flywheel (Crank) to the Crosshead Pin. Stroke can be adjusted on the Flywheel between 1” and 1.25” (25.4, 31.75 mm).
The CMCP601R Reciprocating Compressor Demonstration Kit comes complete with: Reciprocating Compressor, Carrying Case, Speed Controller, Rechargeable Li-Ion Battery and Charger. Sensors are Optional and are provided on request along with 9” Sensor Plate. Reciprocating Compressor Dimensions: 13” L x 4” W x 5.1” H (330 x 102 x 130mm)
FEATURES:
- Mini Reciprocating Compressor Kit
- Battery Powered (Lithium-Ion)
- 0-300 RPM
- Adjustable Height Cylinder
- Rod Drop and Rod Runout
- Crosshead Vibration
- Crosshead Pin Reversal
- Motor/Gear Vibration
- Cylinder End Vibration
- 15+ Hours Battery Life
- Custom Carrying Case
The Battery Powered DC Motor has an adjustable speed of 0 to 319 RPM (0 to 5.3 Hz). The Cylinder is independently mounted on two vertical spring-loaded linear bearings and height (alignment) can easily be adjusted to demonstrate both Rod Drop and Rod Run Out. The Crosshead has both upper and lower Oil Infused Bronze Bearings (Slippers) and the Piston rides on actual Wear Ring Stock. The Connecting Rod has Bronze Bearings on both ends and connects the Flywheel (Crank) to the Crosshead Pin. Stroke can be adjusted on the Flywheel between 1” and 1.25” (25.4, 31.75 mm).
The Battery Powered DC Motor has an adjustable speed of 0 to 319 RPM (0 to 5.3 Hz). The Cylinder is independently mounted on two vertical spring-loaded linear bearings and height (alignment) can easily be adjusted to demonstrate both Rod Drop and Rod Run Out. The Crosshead has both upper and lower Oil Infused Bronze Bearings (Slippers) and the Piston rides on actual Wear Ring Stock. The Connecting Rod has Bronze Bearings on both ends and connects the Flywheel (Crank) to the Crosshead Pin. Stroke can be adjusted on the Flywheel between 1” and 1.25” (25.4, 31.75 mm).
The CMCP601R Reciprocating Compressor Demonstration Kit comes complete with: Reciprocating Compressor, Carrying Case, Speed Controller, Rechargeable Li-Ion Battery and Charger. Sensors are Optional and are provided on request along with 9” Sensor Plate. Reciprocating Compressor Dimensions: 13” L x 4” W x 5.1” H (330 x 102 x 130mm)
Contact us at (214) 238-0493 for full specifications.
