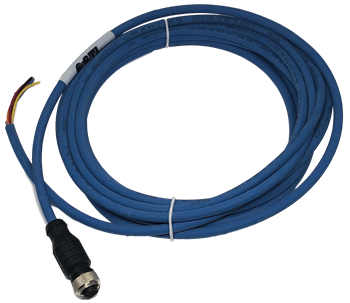

CMCP605M-05, M12 Cable Assembly, 5 meter length

STI Vibration Monitoring, Inc.

CMCP605M-05, M12 Cable Assembly, 5 meter length

$69.00

SKU: CMCP605M-05-01

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

CMCP605M-05, M12 Cable Assembly, 5 meter length. straight connector.

Features:

Molded On Connector

IP68 Locking Collar Connector

Straight or Side Exit Versions Available

5 Pin Cable Mates with 4 and 5 Pin Sensors

Twisted/Shielded Cable with Drain Wire

General Purpose TPE Jacketed Cable

Low Cost

Specifications:

Connector Type: M12 Eurofast
Mates With: 4 or 5 Pin Male M12 Sensors
Material: Thermoplastic Elastomer
Wire Connection: Solder
Wire AWG: 20 AWG
General Purpose Cable Specifications:
Jacket: Black TPE
Conductors: 5 Plus Drain Wire
Shield: Overall Braided Shield
Wire AWG: 22AWG
Insulation: Thermoplastic Elastomer
Diameter: 0.185” (4.75mm)
Weight: 0.048 Lbs/Ft
Temperature Range: -67 to 257°F (-55 to 125°C)

Contact us at (214) 238-0493 for full specifications.
