STI Vibration Monitoring, Inc.

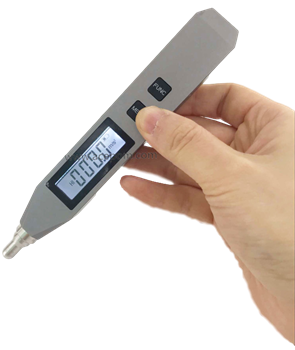

CMCP630VP Handheld Vibration Pen

$449.00

SKU: STI-CMCP630VP-E

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

Downloads

The CMCP630VP is a portable, handheld vibration meter designed for operators, maintenance personal and inspectors that complies the ISO 2372 Standard for Mechanical Vibration of Machines.

Features:

Quick and Easy to Setup and Use
Backlit LCD Display for Low Light Conditions
Lightweight, Compact and Ergonomically Designed Case
Velocity, Acceleration and Displacement Measurements
Peak Hold Function
Hand Pressure
30 Hour Battery Life (Continuous Use)
Rechargeable Battery
Conforms to ISO2372
Lanyard, Travel Case, Charger, Storage Bag and
ISO 10816-1 Severity Chart Included

The CMCP630VP features a shockproof high strength aluminum case, backlit LCD display for low light and direct sunlight conditions and a simple two button operation. The Vibration Pen is capable of measuring Acceleration, Velocity and Displacement and can display the highest measurement using the Peak Hold function. The rechargeable lithium-ion battery allows for up to 30 hours of continuous measurements and recharges using a standard 5VDC USB charger which is provided with the kit. An ISO 10816-1 Vibration Severity Chart is included with the kit for easily referencing the measurement with industry standards.

Specifications:

Case Material: 5052 Aluminum
Anodized Tip Material: 316 Stainless Steel
Battery Life: 30 Hours on Full Charge
Charger: 5V USB Wall Charger (Included)
Velocity Range: 0-8.0 In/S (0-203mm/s) RMS
Frequency Range: 10Hz to 1kHz (ISO Standard)
Acceleration Range: 0-20g’s Peak
Frequency Range 1: 10Hz to 1KHz
Frequency Range 2: 10Hz to 15kHz
Displacement Range: 0-80 mils (2,032um)
Frequency Range: 10 to 500Hz
Dimensions: 6.11”x0.90”x0.47” (156x23x12mm)

ISO 10816-1 Vibration Severity Chart:

Contact us at (214) 238-0493 for full specifications.
