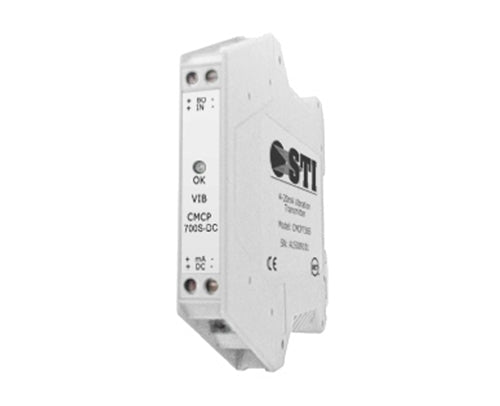

CMCP700S-DC Transmitter forThrust Position, Temperature, DC

The CMCP700S-DC Transmitter can be used with any standard or long range Proximity Probe System to monitor Thrust Position, or Turbine Differential Expansion. The CMCP700S-DC creates -24VDC onboard for proximity sensor system power.

Other parameters such as Case Expansion using a DC LVDT, or Temperature from a Solid State Temperature Sensor can also be monitored and easily DIP switch selectable.

A Buffered Output signal is available on the screw terminals, or the signals can be connected to a din rail mount BNC Module like the CMCP300E.

Features:

• Proximity System Input
• Displacement (mils/mm) Output
• Solid State Temperature Input
• Temperature Output
• -24VDC Created Onboard
• English or Metric Selectable
• DC Detection
• Slimline Din Rail Mounted
• Power On with Red LED Indication
• Buffered Output on Terminal
• 5 Selectable Ranges
