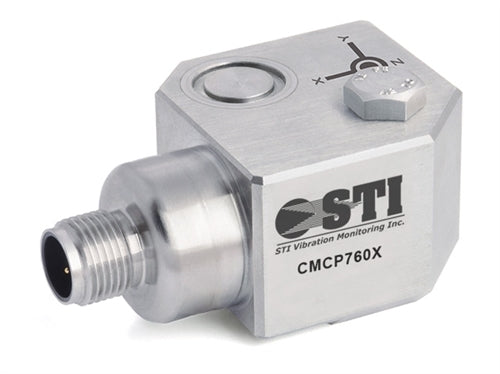

CMCP760TT Triaxial Accelerometer with Temperature Output

The CMCP760TT Side Exit Triaxial Accelerometer with Temperature is the ideal accelerometer for most types of rotating equipment. The CMCP760TT is lightweight and can be use for route based measurements or for permanently installed applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP760TT is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP605 Series.

Additional sensitivities such as 10 mV/g, 30 mV/g, 50 mV/g, 250 mV/g and 500 mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number. Contact Reliability Direct for more details.

Features:

• Sensitivity (Per Axis): 100 mV/g ±10%
• Temperature Output: 10 mV°C
• Frequency Response (±3dB): 0.8 Hz to 15 kHz (48 to 900k cpm)
• Dynamic Range: ±80 g, peak
• Settling Time: 2 Seconds
• Mounting: 1/4"-28 UNF or M8x1.25 Mounting Bolt
• Power Requirements: 18-30 VDC
• Temperature Range: -67 to +284 °F (-55 to +140 °C)
• Case Material: 316L Stainless Steel
• Connector: M12
• Warranty: Lifetime Warranty
