STI Vibration Monitoring, Inc.

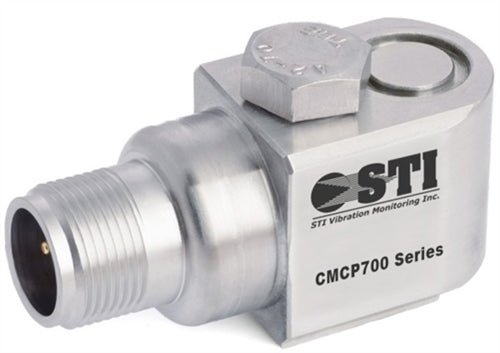

CMCP780A, Compact, Side Exit, 2-Pin Accelerometer, 100Mv/g
$260.00
SKU: CMCP780A
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The CMCP780A Compact Side Exit Accelerometer is a 100 mV/g Low Profile Compact Side Exit Accelerometer and is the ideal accelerometer for use in small spaces. The CMCP780A is lightweight and can be use for magnet or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP780A is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series.
Features:
Sensitivity: 100mV/g ±10%
Frequency Response (±3dB): 0.8Hz to 15kHz (48 to 900k CPM)
Dyanamic Range: ±80 g, peak
Settling Time: 2 Seconds
Mounting: 1/4"-28 UNF Captive Bolt
Power Requirements: 18-30 VDC
Temperature Range: -67 to 284°F (-55 to 140°C)
Case Material: 316L Stainless Steel
Connector: 2 Pin MIL-C-5015
Approvals: CSA/UL Class I Division II Approved, Groups B, C,D
Features:
Sensitivity: 100mV/g ±10%
Frequency Response (±3dB): 0.8Hz to 15kHz (48 to 900k CPM)
Dyanamic Range: ±80 g, peak
Settling Time: 2 Seconds
Mounting: 1/4"-28 UNF Captive Bolt
Power Requirements: 18-30 VDC
Temperature Range: -67 to 284°F (-55 to 140°C)
Case Material: 316L Stainless Steel
Connector: 2 Pin MIL-C-5015
Approvals: CSA/UL Class I Division II Approved, Groups B, C,D
 |
|
Contact us at (214) 238-0493 for full specifications.
