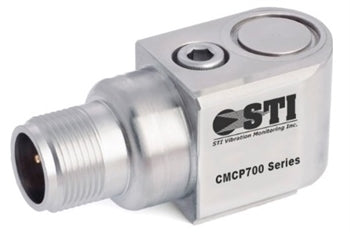

CMCP783A Side Exit Economical Accelerometer
$159.00
SKU: CMCP783A
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The CMCP783A Side Exit Economical Accelerometer is the ideal accelerometer for rotating equipment where hazardous approvals are not required. The CMCP783A is lightweight and can be use for route based or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops.
The CMCP783A is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series. Additional sensitivities such as 10 mV/g, 30 mV/g, 50 mV/g, 250 mV/g and 500 mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number.
Contact Reliability Direct Inc. for more details.
FEATURES:
SPECIFICATIONS: (See Downloads tab)
The CMCP783A is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series. Additional sensitivities such as 10 mV/g, 30 mV/g, 50 mV/g, 250 mV/g and 500 mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number.
Contact Reliability Direct Inc. for more details.
FEATURES:
- Sensitivity: 100 mV/g ±10%
- Frequency Response (at ±10%): 1.5 Hz to 10 kHz (90 CPM to 600 kCPM)
- Dynamic Range: ±60 g, peak
- Setting Time: 2 Seconds
- Temperature Range: -67 to 266 °F (-55 to 130 °C)
- Case Material: 316L Stainless Steel
- Connector: 2 Pin MIL-C-5015, side exit
- Approvals: No hazardous Approvals, see General and Premium Sensors
- 1/4-28 UNF or M8x1.25 Captive Mounting Bolt
- Lifetime Warranty
SPECIFICATIONS: (See Downloads tab)
Contact us at (214) 238-0493 for full specifications.
