STI Vibration Monitoring, Inc.
CMCP787A Premium Side Exit Accelerometer
$215.00
SKU: STI-CMCP787A
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

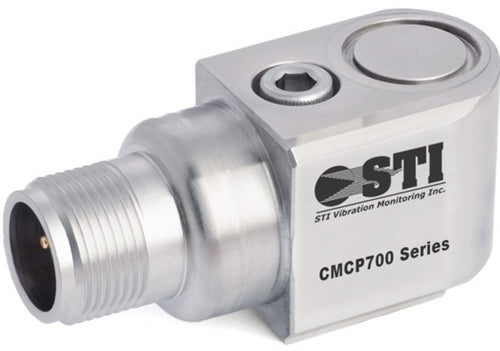

The CMCP787A Premium Side Exit Accelerometer
is the ideal accelerometer for most types of rotating equipment. The
CMCP787A is lightweight and can be use for route based or permanent
mount applications. The sensor is designed so that cross wiring will not
harm the internal components and provides protection against ground
loops. The CMCP787A is waterproof and can be hosed down or submersed
when using the proper extension cable such as the CMCP602 series.
Additional sensitivities such as 10mV/g, 30mV/g, 50mV/g, 250mV/g and 500mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number. Call to order non-standard sensitivities.
Features:
Sensitivity: 100mV/g ±5%
Frequency Response (±3dB): 0.8Hz to 15kHz (48 to 900k CPM)
Dyanamic Range: ±80 g, peak
Settling Time: 1 Second
Power Requirements: 18-30 VDC
Temperature Range: -67 to 284°F (-55 to 140°C)
Case Material: 316L Stainless Steel
Connector: 2 Pin MIL-C-5015
Approvals: CSA/UL Class I Division II Approved, Groups B, C,D
Class 1 Division I Approved if used with IS Barrier or Isolator
Additional sensitivities such as 10mV/g, 30mV/g, 50mV/g, 250mV/g and 500mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number. Call to order non-standard sensitivities.
Features:
Sensitivity: 100mV/g ±5%
Frequency Response (±3dB): 0.8Hz to 15kHz (48 to 900k CPM)
Dyanamic Range: ±80 g, peak
Settling Time: 1 Second
Power Requirements: 18-30 VDC
Temperature Range: -67 to 284°F (-55 to 140°C)
Case Material: 316L Stainless Steel
Connector: 2 Pin MIL-C-5015
Approvals: CSA/UL Class I Division II Approved, Groups B, C,D
Class 1 Division I Approved if used with IS Barrier or Isolator
Contact us at (214) 238-0493 for full specifications.
