STI Vibration Monitoring, Inc.

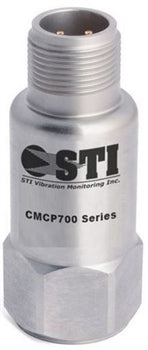

CMCP788A Premium Accelerometer, Top Exit
$202.00
SKU: CMCP788A
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The CMCP788A Top Exit Premium Accelerometer is the ideal accelerometer for most types of rotating equipment where precision and repeatability is key. The CMCP788A is lightweight and can be use for route based or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops.
The CMCP788A is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602H series. Additional sensitivities such as 10 mV/g, 30 mV/g, 50 mV/g, 250 mV/g and 500 mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number. Contact Reliability Direct for details.
FEATURES:
SPECIFICATIONS: (See Downloads tab)
The CMCP788A is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602H series. Additional sensitivities such as 10 mV/g, 30 mV/g, 50 mV/g, 250 mV/g and 500 mV/g are also available in the same sensor package and can be ordered by adding the sensitivity after the base part number. Contact Reliability Direct for details.
FEATURES:
- 100 mV/g ±5%
- 2 Pin MS Connector, Top Exit
- 0.8 Hz to 15 kHz (48 cpm to 900k cpm)
- 1 Second Setting Time
- -67 to +302 °F (-55 to 150 °C)
- 1/4" x 28 UNF and M8x1.25 Mounting Stud
- Class I Division II Approved
- Lifetime Warranty
SPECIFICATIONS: (See Downloads tab)
Contact us at (214) 238-0493 for full specifications.
