STI Vibration Monitoring, Inc.

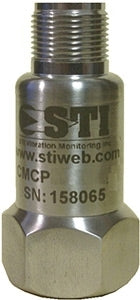

CMCP793V Velocity Sensor, Top Exit

$390.00

SKU: CMCP793V

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

Downloads

CMCP793V Features:

100 mV/In/Sec ±10%
2 Pin MS Connector, Top Exit
2 to 8kHz Frequency Response
2 Second Settling Time
-67 to +284° F (-55 to 140° C)
1/4" x 28 UNF Mounting Stud
Class I Division II Approved

The CMCP793V Piezoelectric Velocity Sensor measurement devices which is used to examine vibration signals in terms of velocity (in/sec) to amplify the signal of interest. The CMCP793V inherently decreases high frequency signals allowing better measurement of low frequency vibration. The CMCP793V sensor is essentially an accelerometer with an internal integration circuit which will produce an output relative to velocity. The CMCP793V is the ideal accelerometer for on most types of rotating equipment. The CMCP793V is lightweight and can be use for magnet or permanent mount applications. The sensor is designed so that cross wiring will not harm the internal components and provides protection against ground loops. The CMCP793V is waterproof and can be hosed down or submersed when using the proper extension cable such as the CMCP602 series.

The CMCP793V is stocked in the industry standard 100mV/In/Sec sensitivity, an optional 500mV/In/Sec version is available. See datasheet for additional details.

Specs:
Sensitivity: 100mV/in/sec ±10%
Frequency Response (±3dB): 2Hz to 6kHz (120 to 260k CPM)
Dyanamic Range: ±40 In/Sec
Power Requirements: 18-30 VDC
Temperature Range: -67 to 284°F (-55 to 140°C)
Case Material: 316L Stainless Steel
Connector: 2 Pin MIL-C-5015
Approvals: CSA/UL Class I Division II Approved, Groups B, C,D

Typical Applications:
Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, HVAC, Spindles, Machine Tooling, Process Equipment and many more.

Contact us at (214) 238-0493 for full specifications.

Shipping

Carriers	UPS or FedEx for domestic orders; FedEx for international orders
Shipping cost	Calculated automatically at checkout for US orders. International orders require a complete ship-to address with postal code.
Freight terms	FOB shipping point, freight prepaid. Title passes to the buyer at the vendor's dock.
Hazardous items	Epoxy adhesives, batteries and paint markers cannot ship by air freight
International	Shipping fees do not include taxes, tariffs or duties

Returns

Return window	7 calendar days from delivery. Contact us before returning any item.
Condition	New, unaltered and unused. Special and custom orders are not returnable.
Restocking fee	15% on non-defective items that are not being exchanged
Full policy	Refund / Return Policy

See our Shipping & Billing Terms for how estimated shipping is charged, and our Refund / Return Policy.

Questions about shipping on this item? Call (214) 238-0493 or contact us.

CMCP793V Data Sheet PDFDownload
