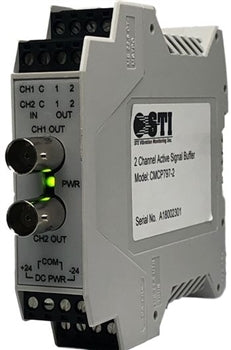

CMCP797-2 Two Channel Active Buffer

• Two Inputs / 6 Outputs
• 3 Active Buffer Outputs Per Input
• Accelerometer or Proximity Probe Signal
• +/-24VDC Powered
• 0 to 150kHz Frequency Range
• Optional Constant Current Power for IEPE Accelerometers
• DC Coupled (Bias/Gap on Outputs)
• Power “On” LED
• Din Rail Mounted
• Optional TBus® Power Wiring

The CMCP797-2 Two Channel Active Buffer Module accepts two inputs from any vibration sensor and provides three (3) Active Buffered Outputs, including one BNC output. The CMCP797-2 has two selector switches to configure the unit for either +V or -V input signals and also for sensor power. The CMCP797-2 is perfect for applications where a signal needs to be split reliably or where a BNC output is needed for portable data collection.
