DTL-100i Digital Torque Wrench

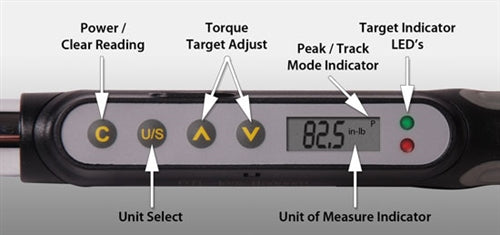

The DTL-100i Digital Torque Wrench has a capacity of 106 in-lb / 12 N-m and is designed for precise measurement and application of torque in industrial, automotive, aerospace and many other applications. Its small size and ratcheting head are ideal for use in areas with limited access. It measures and applies torque in both CW and CCW directions and displays in Real-Time or Peak Mode. Measurement units are user selectable (Lb-in, N-m, ft-lb or Kg-cm).
The DTL-100i features a programmable target set point that indicates the desired torque value with a red and green LEDs and audible beep.
Features
- Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
- CW and CCW operation
- Peak or Real-Time (track) mode (User Selectable)
-
Programmable Target Set-point with audible and LED indicators
At 90% of Target, Green LED illuminates with slow audible beep
At 100% of Target, Green & Red LEDs illuminate with continuous beep - Ratcheting Head
- Includes Calibration Certificate (Click for sample)
- CE Certified
 |
Complete Kit:
The DTL-100i is supplied as a complete kit including the wrench, 1
AAA battery, instruction manual and calibration cert in a fitted plastic
carrying case.
|
Specifications
| Accuracy | CW ±2% / CCW ±3% of indicated from 20 - 100% of capacity |
| Memory | 50 Readings for recall on display, no output capability |
| Operation Mode | Peak hold/ Track |
| Unit Selection | ft-lb, in-lb, N-m, Kg-cm |
| Length | 8 inches / 20 mm |
| Head Type | Lever type Ratchet |
| Battery | 1 AAA |
| Battery Life | 12 Continuous Hours 1 Year Standby |
| Model Code in Manual | DME2-012CN |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | Up to 90% non-condensing |
| Warranty | 1 Year |
Contact us at (214) 238-0493 for full specifications.
