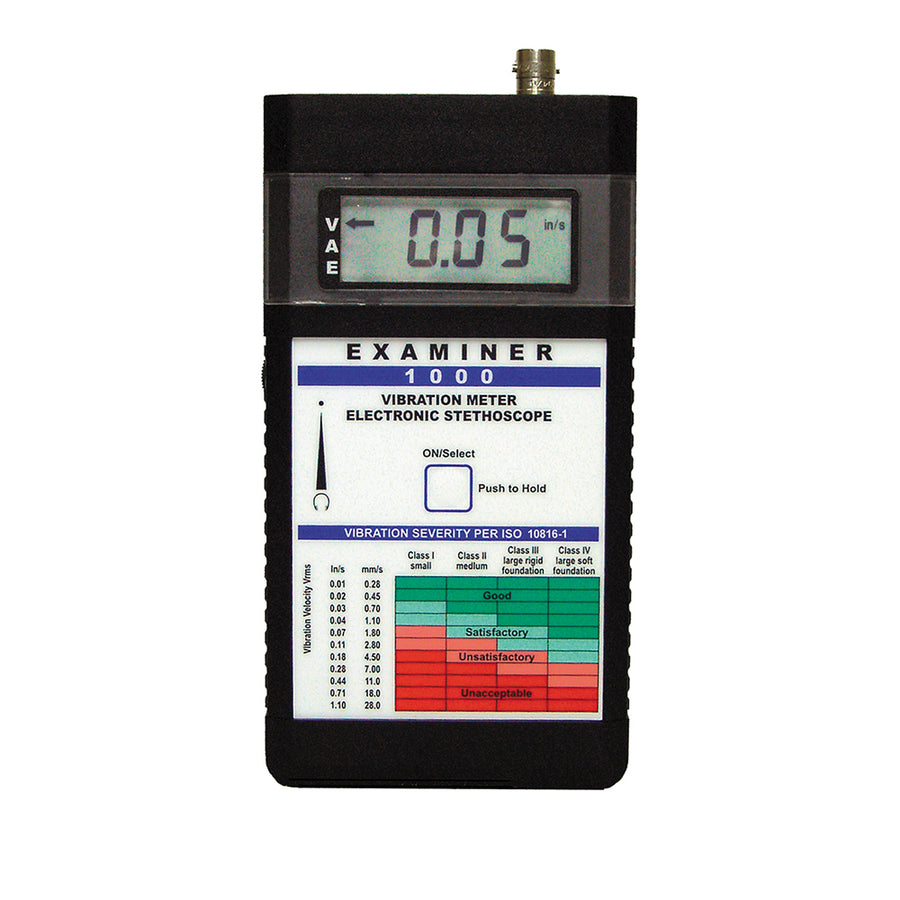

EXAMINER 1000 Vibration Meter
Replacement EXAMINER 1000 Vibration Meter only (batteries included) is easy-to-use with one-hand operation for measuring acceleration, velocity, and acceleration enveloping.
NIST Traceable Certificate is available with PN: 6400-012-CAL.
Detailed Description
The EXAMINER 1000 Vibration Meter is designed for ease of use in condition-based maintenance programs. It is the ideal tool to begin a predictive maintenance program or to add to an existing world-class maintenance program with FFT data collectors and analysis software.
Examiner measures vibration in:
- Acceleration
- Velocity
- Acceleration Enveloping
Features
- One-button operation – no training required for use but interactive vibration training is available
- Front Panel Severity Chart on the front
- Multiparameter Readings – power to trend defects and eliminate unplanned failures
- Stethoscope – hear what you see in the digital display! The proven troubleshooting technique of listening!
- Reliable, accurate, and affordable
Vibration is considered the best operating parameter to judge dynamic conditions such as:
- Balance
- Bearing Defects
- Lubrication
The EXAMINER 1000 is a handheld, battery-powered overall vibration meter and electronic stethoscope. It is the perfect tool for trending overall vibration readings in process equipment such as:
- Rolling Element Bearing
- Motors AC/DC
- Pumps
- Gearboxes
- Compressors
- Fans
Specifications
| Vibration Sensor | Piezoelectric accelerometer 100 mV/g with magnetic base, probe and 5 ft. cable to BNC |
|---|---|
| Display | LCD 3.5 digits – Indicators: Measurement, Hold, Low Battery, Units of Measure |
| Measurement Range | Acceleration: 0.01-19.99 g (RMS)
Velocity: 0.01-19.99 in/sec, 0.1-199.9 mm/sec (RMS) Envelope: 0.01-19.99 gE (peak) |
| Frequency Range | Overall: 10 Hz – 10 kHz Envelope: 0.5 kHz – 10 kHz |
| Output | Sensor excitation: 18 Vdc @ 2 mA (BNC)Audio output: 3.5 mm mini plug; 250 mW into 8 ohms, 150 mW into 32 ohms; adjustable volume control with off position |
| Power | Two (2) AA cells |
| Operating Time | 20 hours continuous without headphones |
| Weight | 7 oz. [0.19 kg] |
| Dimensions | 6.3 x 3.3 x 1.25 in. / 152 x 83 x32 mm |
| Operating Conditions | -14 °F to 122 °F / -10 °C to 50 °C |
