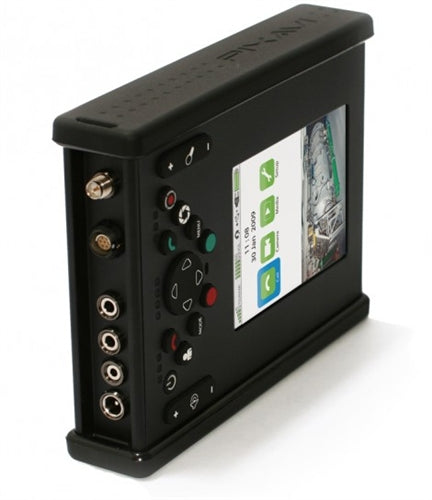

ExCore EX6000 Intrinsically Safe Video Conferencing Cordec

The Xcore 6000 is a compact, battery powered, high performance and affordable HD Wireless Video Conferencing codec. It is per- fect for customized installations and for creating full duplex AV connection to any HD video conferencing endpoint on the market (e.g. Tandberg, Polycom, Sony, Lifesize, etc).

The world’s smallest HD video conferencing codec. This new wireless codec is ideal for custom video conferencing applications as well as wireless video broadcasts, web casts and two way video links in mobile and industrial applications. Combine it with our EX CAM A and you get the EX3500 wearable video conference product




SPECIFICATIONS:

H.323 Signaling	H.323, H.450, H.350, H.235, H.239, H.460
SIP signaling	RFC 3489, RFC 3261, RFC 2237, RFC 3264, RC 3311. RFC 3550, RFC 2032, RFC 2190, RFC 2429, RFC 3407, RFC 3489
Wireless	802.11a/g and Bluetooth
Streaming	RTP, RTSP, ISMA
Video	H.263, H.264
Video Quality	CIF, 480P, 720P
Video Bitrates	128 kbps to 4096 kbps
Audio	G.711, G.722, G.722.1, G.728, AAC-LD, AAC-LC
Connections	Composite video, 7 Volt output for camera supply, DC input, SMA antenna connection, DC input.
Integrated peripherals	Codec, speaker, microphone, antenna
Storage/Recording	Internal 32 GB of flash storage

PHYSICS:

Size	130mm x 110mm x 30 mm
Weight	800 grams (28,2 oz)
Temp. Range	-20 to +40 Celcius
Material	Aluminium
Safety	C-loop for Dropped Object Safety
Screen	480x640 Touch enabled L

CERTIFICATIONS:

Ex Certified	Zone 1 and 2 (Ex ib [ib] mb IIC T6)
IP Grade	IP68 (water proof)
Shock Resistance	4 Joule shock & 2 Meters drop proof
CE	CE Compliant
Toll Tariff	HTC: 85258000
Country of Origin	Made in Norway
FCC	FCC Compliant
