Extech Instruments Corp.

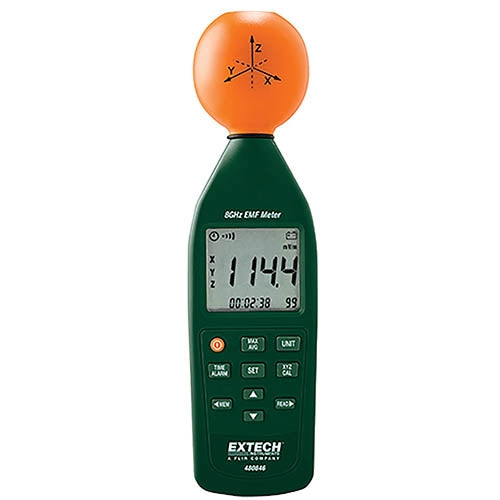

Extech 480846 8 GHz RF Electromagnetic Field Strength Meter
$819.00
SKU: EXT-480846
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
The Extech 480846 RF EMF Strength Meter monitors high frequency radiation in the 10MHz to 8GHz range. Ideal for mobile phones, cell phones, base stations, locating RF hotspots, wireless network (Wi-Fi) RF detection, RF "Electrosmog" detection, microwave leakage, and wireless communication applications (CW, TDMA, GSM, DECT). Meter features non-directional measurement with 3-channel (triaxial) measurement probe, Max Hold and Average functions, and manual store/recall of up to 99 data sets. In addition, there is an audible alarm with a user-selectable threshold.
Features:
Non-directional (isotropic) measurement with three-channel (triaxial) measurement probe
Max Hold and Average functions and level exceed audible alarm with user selectable threshold
Manual store/recall up to 99 sets
Complete with 9V battery and carrying case
What's included in the box?
Features:
Measurement optimized for 900MHz, 1800MHz, 2.7GHz, 3.5GHz and 8GHz
- 1 - Complete With Test Leads
- 2 - AA Batteries
- 1 - Pouch
- 1 - 9V Battery Carrying Case
| Specifications | Range |
|---|---|
| Sensor Type | Electric Field |
| Frequency Range | 10MHz to 8GHz (optimized for 900MHz, 1800MHz, 2.7GHz, 3.5GHz & 8GHz) |
| Units of Measure | mV/m, V/m, µA/m, mA/m, µW/m2 , mW/m2 , W/m2 , µW/cm2 , mW/cm2 |
| Measuring Ranges | 20mV/m to 108.0V/m |
| 53µA/m to 286.4mA/m | |
| 1µW/m2 to 30.93W/m2 | |
| 0µW/cm2 to 3.093mW/cm2 | |
| Resolution | 0.1mV/m, 0.1µA/m, 0.1µW/m2 , 0.001µW/cm2 |
| Audible Alarm | Adjustable threshold with On/Off |
| Memory | Manual store/recall of 99 sets |
| Dimensions | 2.6x2.4x9.7" (67x60x247xmm) |
| Weight | 8.8oz (250g) |
Contact us at (214) 238-0493 for full specifications.
