Extech Instruments Corp.

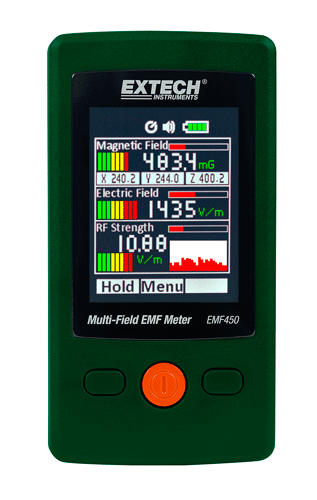

Extech EMF450 Multi-Field EMF Meter
$379.00
SKU: EXT-EMF450
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
The EMF450 is a convenient 3-in-1 EMF meter which simultaneously measures and displays Magnetic Field, Electric Field and Radio Frequency Strength. Ergonomic pocket-sized design with an easy-to-navigate menu. Large vivid color TFT display shows digital readings, bargraphs, and trending graph. Magnetic Field, Electric Field, and Radio Frequency (RF) Strength merasurements. Store up to 20 RF historical records. Data Hold and Auto Power Off with disable feature. Complete with 3 AAA batteries and USB power supply cable.
FEATURES:
FEATURES:
- Multi-Field measurements: Magnetic Field, Electric Field, and Radio Frequency (RF) Strength
- Magnetic Field Triple Axis Sensor (X, Y, Z)
- Audible alarm
- 2.4" (240 x 320 pixels) color TFT display
- Adjustable screen brightness (low, medium, high)
- Store up to 20 RF historical records
- Data Hold and Auto Power Off with disable feature
- Five languages: English, Traditional/Simplified Chinese, Japanese, Spanish
- Complete with 3 AAA batteries and USB power supply cable
| Specifications | Range | Max Resolution | Basic Accuracy | |
|---|---|---|---|---|
| Magnetic Fields (50/60Hz) | 20/200/2000mG | 0.02/0.1/1mG | ±(15%+100 digit) | |
| 2/20/200µT | 0.02/0.1/1µT | |||
| Electric Fields (50/60Hz) | 50V/m to 2000V/m | ±(7% + 50dgt) | ||
| RF Strength (50MHz to 3.5GHz) | 0.02uW/m² to 554.6mW/m² | 0.02µW/m² | ||
| 0.02uW/cm² to 55.4uW/cm² | 0.002µW/cm² | |||
| 36.1mV/m to14.46V/m | 0.2mV/m | |||
| 0.02mA/m to 38.35mA/m | 0.2µA/m | |||
| -51dB to 16dBm | 2dB | ±2dB at 2.45GHz | ||
| Dimensions/ Weight | 4.5 x 2.4 x 0.8" (115 x 60 x 21mm)/ 4.2oz (120g) | |||
| Bargraph | Magnetic Fields | RF Strength | Electric Field | |
| Green | 0 to 10.00mG | 0 to 0.99mW/m² | 0 to 500V/m | |
| 0 to 0.59V/m | ||||
| Yellow | 10.01 to 100mG | 1 to 9.99mW/m² | 501 to 1000V/m | |
| 0.6 to 1.9V/m | ||||
| Red | 101 to 2000mG | >10mW/m² | >1001V/m | |
| >2V/m | ||||
Contact us at (214) 238-0493 for full specifications.
