Extech PQ3350-1 Power Quality Analyzer (1200A, 600Vac)

Discontinued. This item is no longer made. The manufacturer's current equivalent is the Extech PQ3450 3-phase power analyzer — contact us for pricing and availability.

The Extech PQ3350-1, 3-phase power & harmonics analyzer offers power measurements of single and 3-phase/3-wire or 3-phase/4-wire systems. The PQ3350 is also capable of datalogging up to 52,428 single phase readings or 17,476 3-phase readings. Kit 1 includes 1200A 12" flexible current clamp probes These flexible clamp probes can be used for wrapping around bus bars and wire bundles.

Meter Display

Harmonics Analysis

Power Analysis

Phase Analysis

Internal Menu

With a large backlit LCD display that shows up to 35 parameters on one screen, the Extech PQ3350 3-phase power & harmonics analyzer offers a simultaneous display of harmonics and waveform. Other features of the PQ3350 include clamp-on True RMS power measurements, display of waveform with peak values, analysis of total harmonic distortion and adjustable CT (1 to 600)and VT (1 to 3,000) ratios.

An optically isolated USB interface, with software, allows users to download waveforms, power parameters and harmonics from the Extech PQ3350 3-phase power & harmonics analyzer. Optional clamp probes are also available as accessories for the PQ3350, ranging from 100A to 3000A and allowing you to choose the best clamp probe to fit your application needs.

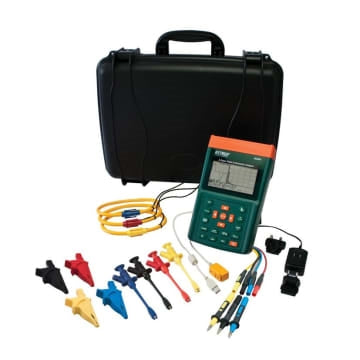

What's Included:

• (3) flexible current clamps
• (4) voltage leads with alligator clips and retractable plunger clips
• (8) AA batteries
• Universal AC adaptor
• Software
• USB interface cable
• Case

Specifications	Range	Basic Accuracy
ACV (True rms)	600V	±(0.5%rdg+5d)
AC Current	Model PQ3350-1 (1200A)	±(0.5%rdg+5d)
Active Power (kW)	9.999MW	±(1%rdg+8d)
Apparent Power (kVA)	9999kVA	VA=Vrms x Arms
Reactive Power (kVAR)	9999kVAR	VAR= sqr (VA2 -W2 )
Power Factor	0.0 to +1.00	±(1.5%°rdg±8d)
Frequency	45-65Hz	0.1Hz
Phase	-180.0°~ 0°~ +180.0°	±1°
Harmonics	1 to 99	±2%
Crest Factor	1.00 to 99.99	±(5%+30d)
Peak AC Voltage accuracy	-	±(5%rdg+30d)
Peak AC Current accuracy	-	±(5%rdg+30d)
Active Power Energy (kWh)	0mWh to 999,999kWh
Reactive Power Energy (kVARh)	0.0kVARh to 1000MWh
Datalogging	52428 records (single phase)/17476 records (3 phase)
Dimensions/Weight	10.1 x 6.1 x 2.3" (257 x 155 x 57mm)/ 2.5 lbs (1160g)
