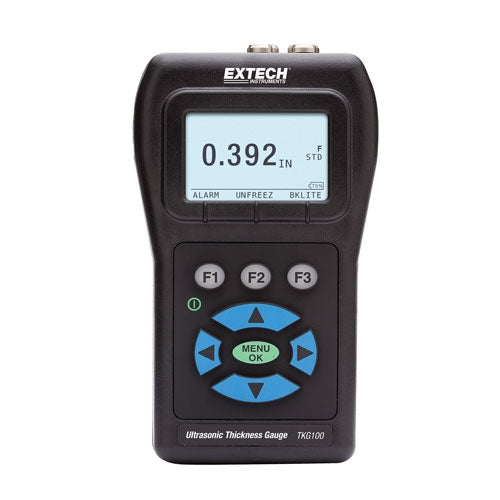

Extech TKG100 Ultrasonic Thickness Gauge

Extech TKG100 is designed for making non-destructive measurements of wall thickness on primarily steel structures. TKG-100 provides a monochrome thickness readout. The TKG100 kit includes 2oz bottle of couplant, 2 AA batteries, transducer with potted cable, and hard case.
The hold mode retains the last thickness reading with reverse video display. The freeze mode freezes the display which is ideal for high temperature readings. The TKG100 beeps and flashes the display as well as keypad illumination.

Features:

• Sunlight readable dot-matrix display with backlight
• Wide measurement range:
  • 5MHz probe: 0.040" to 20" of steel
  • 10MHz probe: 0.020” to 20" of steel (optional)
• Multiple transducer options for high temperature and difficult to measure materials
• Fast minimum feature to capture minimum thicknesses
• Complete with 2oz bottle of couplant, 2 AA batteries, 5MHz Transducer, and hard carrying case

Applications:

Boiler Tubes Pressure Vessels Storage Tanks Ship Hulls

Containers Home Oil Tanks Pipes Steam Lines

Compressors Shafts Bridge Pins Bond Inspection
