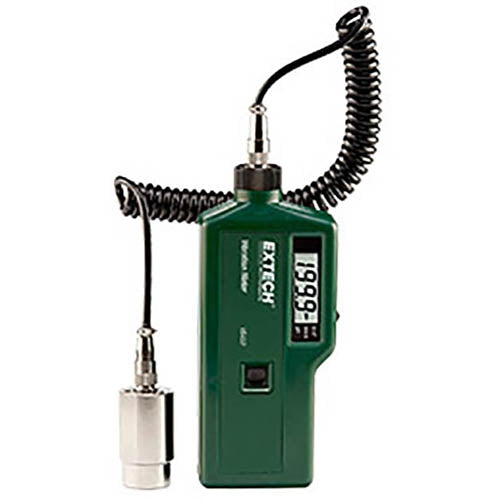

Extech VB450 Vibration Meter

The Extech VB450 convenient compact sized Vibration Meter measures vibration levels in industrial machinery. Misalignment, poor balancing, structural compromises, and other factors can cause unwanted vibration increases. The VB450 features an external sensor with a wide 10Hz to 1500Hz frequency range and provides Displacement, Velocity, and Acceleration measurement.

VB450 Vibration Meter

Remote vibration sensor with magnetic adapter on 7.9" (0.2m) coiled cable Wide frequency range of 10Hz to 1500Hz Velocity (RMS), Acceleration (Peak), and Displacement (Peak-to-Peak) measurements Automatic data hold after measurement button is released Auto power off after 1 minute Low battery indicator

Included with the Vibration Meter:

• 1 - Remote Sensor
• 1 - Magnetic Mount
• 1 - 9V Battery
• 1 - Wrist Strap
• 1 - Soft Case

Specifications:
Acceleration (Peak): 0.1 to 199.9 m/s²
Velocity (RMS): 0.1 to 199.9mm/s
Displacement (Peak-to-Peak): 1 to 1999µm
Resolution: 0.1m/s² , 0.1mm/s, 1µm
Basic accuracy: ±(5% + 1 digit)
Dimensions: 7.3 x 2.7 x 1.2" (185 x 68 x 30mm)
Weight 8.1oz (230g)
