Extech Instruments Corp.
Extech VPC300 Video Particle Counter with Built-In Camera & NIST Certificate
$2,049.00
SKU: EXT-VPC300
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns

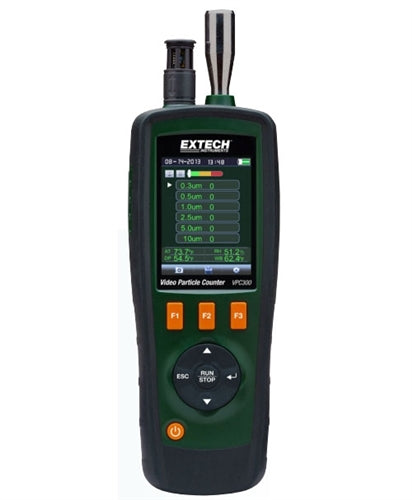

The Extech VPC300 is a Video Particle Counter with built-in Camera.
Measures up to 6 channels of particle sizes plus air temperature and
relative humidity. Used for capturing videos and photos that are stored
onto internal memory or a micros card. The VPC300 can measure up to 6
channels of particle sizes plus air temperature and relative humidity.
Use the included software to generate reports with videos, photos and
data points.
What's in the Box?
|
|
- 1 - NIST-Traceable Calibration Certificate
- 1 - Universal AC Adapter/Charger With Multiple Plugs
- 1 - USB Cable
- 1 - PC Software
- 1 - Tripod
- 1 - Filter
- 1 - 7.4V Nimh Battery
- 1 - Hard Protective Case
Channel of Particle Sizes
0.3, 0.5, 1.0, 2.5, 5.0, 10μm
Flow Rate
0.1ft3 (2.83L/min) controlled by internal pump
Count Modes
Cumulative, Differential, Concentration
Counting Effeciency
50% @ 0.3µm; 100% for particles>0.45
Coincidence Loss
5% @ 2,000,000 particles per ft3
Air Temperature
-14 to 140°F (-25 to 60°C); Accuracy: ±2°F/1°C
Relative Humidity
0 to 100%RH; Accuracy:±3%RH (40% to 60%RH)
Dew Point/ Wet Bulb
32 to 122°F (0 to 50°C)
Dimensions/Weight
9.4 x 3 x 2.2" (240 x 75 x 57mm)/1.26lbs (570g) - See more at:
https://www.instrumentation2000.com/extech-vpc300...
Channel of Particle Sizes
0.3, 0.5, 1.0, 2.5, 5.0, 10μm
Flow Rate
0.1ft3 (2.83L/min) controlled by internal pump
Count Modes
Cumulative, Differential, Concentration
Counting Effeciency
50% @ 0.3µm; 100% for particles>0.45
Coincidence Loss
5% @ 2,000,000 particles per ft3
Air Temperature
-14 to 140°F (-25 to 60°C); Accuracy: ±2°F/1°C
Relative Humidity
0 to 100%RH; Accuracy:±3%RH (40% to 60%RH)
Dew Point/ Wet Bulb
32 to 122°F (0 to 50°C)
Dimensions/Weight
9.4 x 3 x 2.2" (240 x 75 x 57mm)/1.26lbs (570g) - See more at:
https://www.instrumentation2000.com/extech-vpc300...
Channel of Particle Sizes
0.3, 0.5, 1.0, 2.5, 5.0, 10μm
Flow Rate
0.1ft3 (2.83L/min) controlled by internal pump
Count Modes
Cumulative, Differential, Concentration
Counting Effeciency
50% @ 0.3µm; 100% for particles>0.45
Coincidence Loss
5% @ 2,000,000 particles per ft3
Air Temperature
-14 to 140°F (-25 to 60°C); Accuracy: ±2°F/1°C
Relative Humidity
0 to 100%RH; Accuracy:±3%RH (40% to 60%RH)
Dew Point/ Wet Bulb
32 to 122°F (0 to 50°C)
Dimensions/Weight
9.4 x 3 x 2.2" (240 x 75 x 57mm)/1.26lbs (570g) - See more at:
https://www.instrumentation2000.com/extech-vpc300...
Contact us at (214) 238-0493 for full specifications.
