FLIR

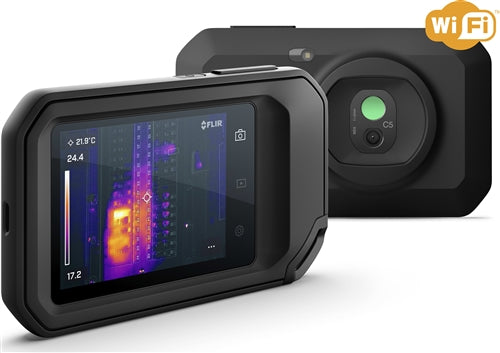

FLIR C5 Compact Thermal Camera with WiFi
$699.00
SKU: FLIR-C5
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
The FLIR C5 compact thermal camera is your go-to tool for building inspections, facilities maintenance, HVAC/R, electrical repair, and other troubleshooting applications. Featuring a 160 x 120 pixel thermal camera, 5MB visual inspection camera, and LED flashlight, the powerful FLIR C5 makes it easy to identify hidden problems. Built-in FLIR Ignite™ cloud connectivity allows direct data transfer, storage, and backup, so images are always available on all your devices.
With the FLIR C5, you'll be ready to locate hot fuses, air leaks, plumbing issues and more.
FEATURES:
With the FLIR C5, you'll be ready to locate hot fuses, air leaks, plumbing issues and more.
FEATURES:
- 160 x 120 thermal resolution
- 5 megapixel visual camera
- 3.5 inch built in screen
- Pinpoint and communicate potential issues faster
- MSX technology embosses visual and thermal image
- Built-in FLIR Ignite cloud connectivity allows direct data transfer, storage, and backup
- IP54 enclosure provides a high level of protection against dust and water
- Designed to withstand a 2 m (6.6 ft) drop
- Bright LED flashlight for dark, hard to reach areas
OVERVIEW
- Accuracy
- At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
- Object Temperature Range
- -20 to 400°C (-4 to 752°F)
- IR Sensor
- 160 x 120 (19,200 pixels)
- Touchscreen
- Capacitive touch
- Screen Rotation
- Yes
- FLIR Screen-EST Mode
- No
CONNECTIONS & COMMUNICATIONS
- Bluetooth
- PAN
- Storage Media
- Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
- USB
- USB 2.0, Type-C connector
- WiFi
- 802.11 a/ac/b/g/n (2.4 and 5 GHz)
- Image Upload
- Directly upload images to FLIR Ignite cloud library and services
ENVIRONMENTAL
- Drop test
- 2 m (6.6 ft)
- Encapsulation
- Camera housing and lens: IP54 (IEC 60529)
- Operating Temperature Range
- -10 to 50°C (14 to 122°F)
- Storage Temperature Range
- -40 to 70°C (-40 to 158°F)
- Tripod Mounting
- UNC ¼"-20 (built-in)
IMAGING & OPTICAL
- Color palettes
- Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Digital Camera
- 5 MP
- Digital Camera Focus
- Fixed
- Focus
- Focus free
- Gallery
- Thumbnails and custom folder structure
- Image Adjustment
- Automatic level and span, Manual level and span, 1-Touch Level/Span
- Image Frequency
- 8.7 Hz
- Image Modes
- Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- Minimum Focus Distance
- Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
- Spectral Range
- 8 to 14 µm
MEASUREMENT & ANALYSIS
- Measurements correction
- Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
- Thermal Sensitivity
- <70 mK
- Measurement Functions
- Spot, Box with max./min.
METER DATA
- Camera size (L x W x H)
- 138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
PHYSICAL FEATURES
- Screen Size
- 3.5 in
- Weight [including battery]
- 0.19 kg (0.42 lb)
POWER
- Battery operating time
- 4 hours
- Battery Type
- Rechargeable built-in Lithium ion battery
- Charging system
- USB-C (1 A)
- Charging Time
- 2 hours
- External Power Operation
- 5 V, USB-C
STORAGE MEDIA
- File Formats
- Standard JPEG, 14-bit measurement data included
- Image Storage
- >5000 images
