FLIR

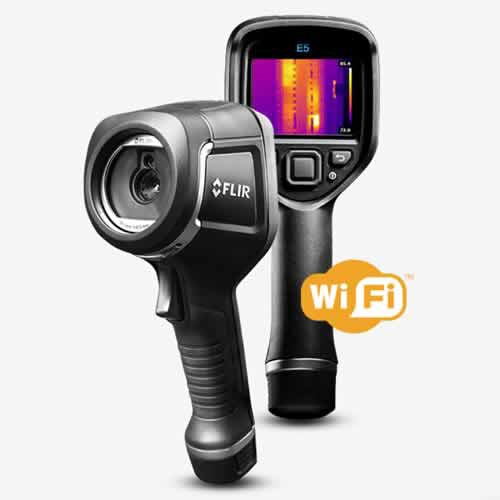

FLIR E5-XT IR Camera, Extended Temperature Range & WiFi
$0.00
SKU: FLIR-E5-XT
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Discontinued. This item has been replaced by the FLIR E6 PRO IR Camera, Extended Temperature Range & WiFi.
FLIR E5-XT, Infrared Camera with Extended Temperature Range & WiFi, 160x120 pixels, 9Hz!Product Features:
- Fully automatic and focus-free
- Accurately measure your target using center spot or max/min area box
- Navigate easily to on-screen settings, image modes, and measurement tools using simple button controls
- Activate MSX to enhance IR images with visual detail for better perspective and interpretation
- Records standard JPEGs with embedded temperature data for easy sharing with clients
- Wi-Fi connectivity to mobile devices via the FLIR Tools Mobile app
- Rapid Wi-Fi or USB image transfer for documentation
- Image analysis and editing, plus report creation, through FLIR Tools
- Lightweight and well-balanced at just 1.2 lbs (0.575 kg)
- Withstands a 2-meter (6.6 ft.) drop test
- IP54 Enclosure provides a high level of protection against dust and water
- IR resolution: 160 x 120 (19,200 pixels)
- Thermal sensitivity/NETD: <0.10°C (0.27°F) / <100 mK
- Spatial resolution (IFOV): 5.2 mrad
- Field of view (FOV): 45° x 34°
- F-number: 1.5
- Image frequency: 9 Hz
- Focus: Focus-free
- Operating temperature range: 15°C to 50°C (5°F to 122°F)
- Battery: Rechargeable 3.6 V Li ion battery
- Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery charging time: 2.5 hours to 90% capacity in camera, 2 hours in charger
FLIR E5-XT Specifications
| IR Resolution | 160 x 120 (19,200 pixels) |
| Thermal Sensitivity/NETD | <0.27°F (0.10°C)/<100 mK |
| Spatial Resolution (IFOV) | 5.2 mrad |
| Field of View | 45 x 34° |
| F-Number | 1.5 |
| Image Frequency | 9 H |
| Focus | Focus-free |
| Spectral Range | 7.5 to 13 µm |
| Image Modes | Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera |
| Color Palettes | Iron, rainbow, black and white |
| Object Temperature Range | -4 to 752°F (-20 to 400°C) in two ranges |
| Accuracy | ±3.6°F (±2°C) or ±2% of reading for ambient temperature 50 to 95°F (10 to 35°C) and object temperature above 32°F (0°C) |
| Dimensions | 9.6 x 3.7 x 5.5" (244 x 95 x 140 mm) |
| Weight | 1.27 lb (0.575 kg) |
What's included with the FLIR E5-XT
- Infrared Camera
- USB Cable
- Power Supply/Charger with EU, UK, US and Australian Plugs
- Battery
- Hard Carrying Case
- Printed Documentation
Contact us at (214) 238-0493 for full specifications.
Shipping
| Carriers | UPS or FedEx for domestic orders; FedEx for international orders |
|---|---|
| Shipping cost | Calculated automatically at checkout for US orders. International orders require a complete ship-to address with postal code. |
| Freight terms | FOB shipping point, freight prepaid. Title passes to the buyer at the vendor's dock. |
| Hazardous items | Epoxy adhesives, batteries and paint markers cannot ship by air freight |
| International | Shipping fees do not include taxes, tariffs or duties |
Returns
| Return window | 7 calendar days from delivery. Contact us before returning any item. |
|---|---|
| Condition | New, unaltered and unused. Special and custom orders are not returnable. |
| Restocking fee | 15% on non-defective items that are not being exchanged |
| Full policy | Refund / Return Policy |
See our Shipping & Billing Terms for how estimated shipping is charged, and our Refund / Return Policy.
Questions about shipping on this item? Call (214) 238-0493 or contact us.
Obsolete
Ask us about a replacement
This item is obsolete
It has been discontinued by the manufacturer and can no longer be ordered.
Replaced by:
Or call (214) 238-0493.
