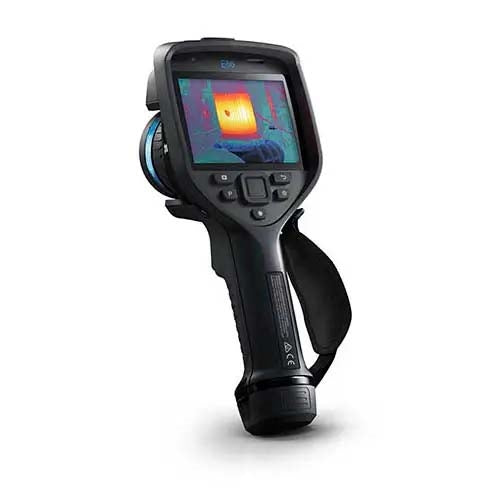

FLIR E86-14 degree Advance Thermal Imaging Camera
$14,200.00
SKU: FLIR-E86-14
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
- FLIR E86-14 Advanced Thermal Imaging Camera, Viewfinder, MSX and Ultra Max Technologies, FLIR Thermal Studio Pro, 14 Lens, 464 x 348, 30 Hz
- 14°, 29 mm lens (included): Telephoto lens with narrow field of view for precise focus and crisp imaging of distant targets
- Laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²)
- Interchangeable, auto-calibrating lenses allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly
- Onboard integration with Teledyne FLIR routing software, built-in mic for voice annotation, and report generation features all help streamline work
- Display: 4 in., 640 x 480 pixel touchscreen LCD with auto-rotation
- Teledyne FLIR Inspection Route: Enabled in camera
- Laser pointer: Yes
- Programmable buttons: 1
- Text: Predefined list or touchscreen keyboard
- Time lapse: 10 seconds to 24 hours (infrared)
- Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
- Communication interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
- METERLiNK: Yes
- Storage media: Removable SD card
- Video out: DisplayPort over USB Type-C
- Operating temperature range: -15 to 50°C (5 to 122°F)
- Safety: EN/UL/CSA/PSE 60950-1
- Shock and vibration and encapsulation: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6), IP54 (IEC 60529)
- Storage temperature range: -40 to 70°C (-40 to 158°F)
- Color palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Detector type and pitch: Uncooled microbolometer, 17 µm
- Digital camera: 5 MP, with built-in LED photo/video lamp
- Digital zoom: 1-4x continuous
- f-number: 1.3
- Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Global Positioning System [GPS]: Automatic image tagging
- Image frequency: 30 Hz
- Image sketch: From touchscreen, on infrared image only
- IR resolution: 464 x 348 pixels
- Lens identification: Automatic
- Minimum focus distance: 0.15 m
- Non-Radiometric IR or visual video: H.264 to memory card
- Non-Radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture: Resizable and movable
- Radiometric IR video recording: Real-time radiometric recording (.csq)
- Radiometric IR video streaming: Yes, over UVC
- Spectral range: 7.5-14 µm
- Thermal sensitivity/NETD: <40 mK at 30°C (86°F)
- UltraMax: Yes
- Accuracy: ±2°C (±3.6°F) or ±2% of reading
- Area measurement information: Yes
- Laser Distance Meter: Yes; dedicated button
- Measurement Presets: No Measurement, Center Spot, Hot Spot, Cold Spot, User Preset 1, User Preset 2
- Object temperature range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
- Spot meter: 3 ea. in live mode
- Battery operating time: >2.5 hours at 25°C (68°F) and typical use
- Battery type: Rechargeable Li-ion battery
- Image file format: Standard JPEG with measurement data included; infrared-only mode
- Image storage mode: Infrared, Visual, MSX, Picture-in-Picture, Gallery
Contact us at (214) 238-0493 for full specifications.
